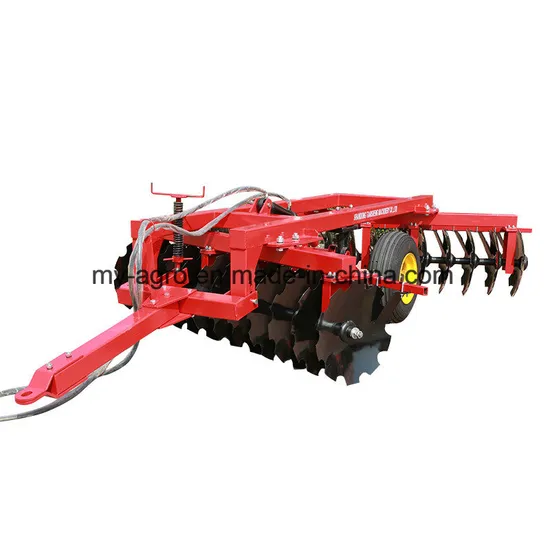

Hydraulic Trailed Offset 24 Discs Harrow with Wheels for 100HP Tractor
| US$2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZ-2.5
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Red
Transport Package
Iron Box
Trademark
myagro
Origin
Dezhou
Packaging & Delivery
Package Size
1250.00cm * 80.00cm * 70.00cm
Package Gross Weight
1250.000kg
Product Description
The series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields. The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and chang directiong on the edge of fields.| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall dimension | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2 | 2.5 | 3 | 3.4 |
| Working depth | cm | 20 | ||||
| Blade spacing | mm | 230 | ||||
| No of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia.of disc | mm | 660 | ||||
| Transport clearance | mm | >160 | ||||
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | kw | 44-55 | 52.9-66.2 | 55-73.5 | 58.8-88 | 66.2-100 |
| Linkage | Trailed | |||||
