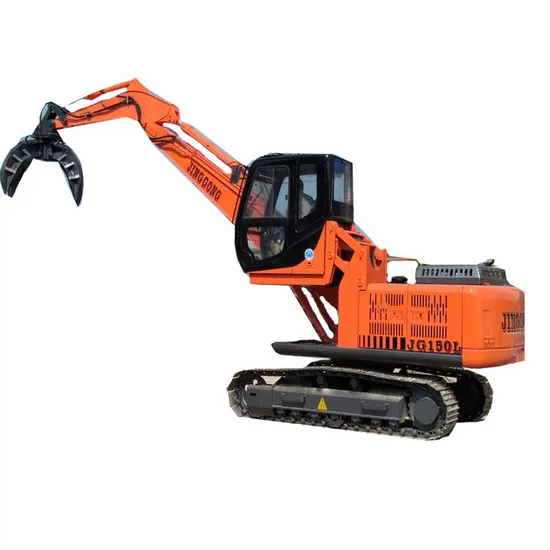

Jing Gong Crawler Excavator China Scrap Grapple Excavator Orange Peel Grapple Digger
| US$83,000.00-88,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JG-150L
Type
Crawler Excavator
Usage
Special Excavator
Bucket
Grapple
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Weight
13.5tons
Transport Package
Nude Packing
Specification
7500*2460*2920mm
Trademark
Jing Gong
Origin
China
Production Capacity
3000sets/Year
Product Description
| SPECIFICATIONS OF JG150L Crawler Excavator with Rotating Scrap Handling Grapple | ||||||||||
| RANGE OF OPERATION | Boom length | 4200mm | ||||||||
| Arm length | 2000mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4800mm | |||||||||
| Maximum Digging Force | 90KN | |||||||||
| Maximum Digging Height | 7180mm | |||||||||
| Maximum Dumping Height | 5080mm | |||||||||
| Back-end radius of gyration | 2300mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 7500*2460*2920mm | ||||||||
| Machine Height | 2730mm | |||||||||
| Wheel base | 2850mm | |||||||||
| Track Gauge | 1960mm | |||||||||
| Width Of Crawler | 500mm | |||||||||
| Width Of Platform | 2460mm | |||||||||
| Ground clearance of counterweight | 900mm | |||||||||
| Min ground clearance | 420mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 13500kg | |||||||||
| Engine model | LRM3Z-22/4BTAA3.9 | |||||||||
| Rated Power | 85KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 26Mpa | |||||||||
| Hydraulic system flow | 270L/min | |||||||||
| Metering gear pump | 2*63ml/r | |||||||||
| Max Hauling force | 76.5KN | |||||||||
| (High speed/low speed) | 5/2.9km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Volume Of Bucket | 0.5m3 | |||||||||
| Revolution Overdrive Pressure | 25Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥8L/h | |||||||||
| Capacity Of The Fuel Tank | 226L | |||||||||
| Hydraulic Tank Capacity | 227L | |||||||||
JG150Z grapple wheel excavator is installed with 93KW turbocharged engine and 360°rotary grab, realizing a grab
capacity of 0.8-0.9 tons.
It can be used for loading and unloading in wood mills, sugar cane fields, stone factories, scrap iron plants, etc.
It has a unique 360° rotating stall that is reliable and durable. The equipped bulldozer greatly improves the stability
and stability of the working state of the whole machine.
