Wolf 2000kg/2t Small/Mini Excavator with Zero Tail
| US$13,000.00-13,400.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
WE20
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.07m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Machine Weight
1900kg
Engine
Kubota E5
Engine Power
14kw
Swing Speed
0-9 R/Min
Travelling Tracking Force
15.2 Kn
Hydraulic System Working Pressure
16MPa
Bucket Digging Force
18 Kn
Arm Digging Force
11kn
Max. Digging Depth
2400mm
Max Digging Height
3700mm
Max. Dumping Height
2440mm
Max. Digging Radius on Ground
4040mm
Travelling Speed
2.8 Km/H
System Rated Pressure
21.5 MPa
Ground Clearance
150mm
Transport Package
4 Sets/20gp, 8 Sets/40gp
Specification
CE, ISO, EURO 5
Trademark
WOLF
Origin
Shandong
HS Code
84295212
Production Capacity
3000 Sets/Year
Product Description

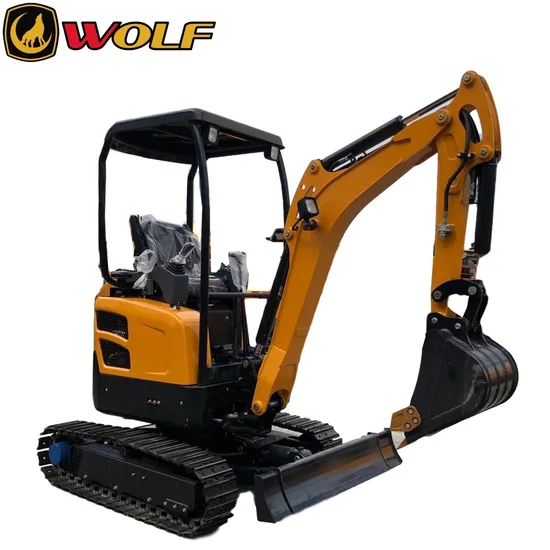

WOLF WE20 2 Ton mini Excavator with Rubber TrackProduct Feature And Advantage
Zero tail design,small size and easy to transport, could be loaded onto light truck or small trailer,extended track could reduce the width to 990mm. Original Kubota engine,reliable duration, low noise and high efficiency. Most advanced loading sensing system and self developed hydraulic debug technology ensure the machine's operation easy and comfortable. Famous brand hydraulic system parts ensure the stable quality. equipped with double fuel filter to guarantee fuel purity to protect engine boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, paper making factory etc. and could replace 4~5 manpower.
Standard configuration:
Engine:Kubota E5 14.2kw
Max. Digging Depth:2400mm
Max. Digging Height:3700mm
Max. Dumping Height:2440mm
Dimension(L×W×H):3555X990/1300x2290mm
Operation Weight:1900kg
With adjustable rubber tracks and swing arm, Zero tail
Optional:
Quick hitch, all kinds of attachments
such as 300mm bucket, 800mm bucket,
435mm bucket, grappe, hammer, thumb bucket, auger etc.
Specifications:
| Engine Model | Kubota 14.2kW/2200rpm |
| Engine Type | Direct injection, water cooled, natural intake |
| No. of cylinder | 3 |
Swing Speed | r/min | 0-9 |
| Traveling Speed | km/H | 2.8 |
| Grade ability | % | 70(35°) |
| System rated pressure | Mpa | 21.5 |
| Ground Pressure | Kpa | 30 |
| Tracking Force | Kn | 15.2 |
| Bucket Digging Force | kN | 18 |
| Arm Digging Force | kN | 11 |
| Overall Length | mm | 3555 |
| Overall Width | mm | 990/1300 |
| Overall Height | mm | 2290 |
| Ground clearance | mm | 150 |
| Undercarriage width | mm | 990 |
| Dozer Blade | mm | 1050×240 |
| Operation Weight | KG | 1900 |
| Bucket Capacity | m3 | 0.07 |
| Max. Digging Radius | mm | 4040 |
| Max. Digging Depth | mm | 2400 |
| Max. Digging Height | mm | 3700 |
| Max. Dumping Height | mm | 2440 |
| Max. Dozer Cutting | mm | 270 |
| Max. Dozer Lifting | mm | 240 |
| Boom Deflexion (Left/Right) | ° | 75/45 |
| Tail Swing Radius | mm | 650 |
Technical Drawing
Packing and delivery:
4 sets in one 20GP; 8 sets in one 40GP
For different market with different engines, Kobuta Euro5 engine for Europe market and Kubota Tier4 engine for North America market.
Surely, there is also other different models to meet your different demands:
| Wolf mini excavator from 800kg to 2500kg | |||||||
| Model | WE08 | WE10 | WE12 | WE16 | WE18 | WE20 | WE25 |
| Weight | 800kg | 1000kg | 1040kg | 1600kg | 1800kg | 2000kg | 2500kg |
| Engine | Koop KF192 Euro5 | Koop KF192 Euro5 | Yanmar3TNV70S | Yanmar3TNV70S | Laidong3TE25(EFI engine) | Kubota D1105 Euro5 | Laidong3TE30(EFI engine) |
| Power | 7kw | 7kw | 10kw | 10kw | 18.1kw | 14.1kw | 22.1kw |
| Hydraulic system working pressure | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 21.5Mpa | 20Mpa |
| Swing speed | 0-13r/min | 0-13r/min | 0-13r/min | 0-15r/min | 10-12r/min | 0-9r/min | 12-14r/min |
| Travelling speed | 1.5km/h | 2km/h | 2km/h | 2.3km/h | 2.8km/h | 2.8km/h | 2.8km/h |
| Grade ability | 30° | 30° | 30° | 30° | 35° | 35° | 35° |
| Traveling Tracking Force | 8.5KN | 8.3KN | 8.5KN | 13.5KN | 15KN | 15KN | 15KN |
| Bucket Digging Force | 9.5KN | 7.2KN | 9.5KN | 11KN | 11.5KN | 18KN | 11.5KN |
| Arm Digging Force | 5KN | 4.6KN | 5KN | 7.9KN | 9.3KN | 11KN | 9.3KN |
| Overall length | 1877mm | 2840mm | 2770mm | 3290mm | 3800mm | 3555mm | 4080mm |
| Overall width | 896mm | 880mm | 896mm | 1050mm | 1050mm | 990/1300mm | 1300mm |
| Overall height | 1990mm | 2200mm | 1990mm | 2400mm | 2280mm | 2290mm | 2280mm |
| Axle base | 896mm | 900mm | 896mm | 1140mm | 1050mm | 1270mm | 1270mm |
| Track width | 130mm | 180mm | 130mm | 180mm | 230mm | 250mm | 250mm |
| Max. Digging Radius | 2850mm | 3065mm | 2850mm | 3470mm | 3860mm | 4040mm | 4370mm |
| Max. Digging Depth | 1650mm | 1715mm | 1650mm | 2150mm | 2050mm | 2400mm | 2450mm |
| Max. Digging Height | 2550mm | 2600mm | 2550mm | 3275mm | 3370mm | 3700mm | 3700mm |
| Max. Dumping Height | 1800mm | 1830mm | 1800mm | 2310mm | 400mm | 2440mm | 2450mm |
All of the machines are CE approved, quality can be assured.
