High Precision Tractor Trailed 3.5m Laser Land Grader Agricultural Mechanical Equipment Scraper

Product Description

Product Description

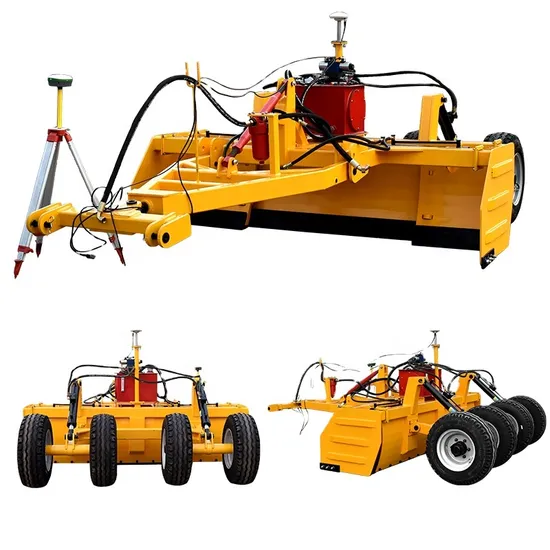

2m-3.5m double control Laser land leveler for tractor, auto leveling land scraper

This ZYPJ series laser land leveler is used with 4-wheel farm tractor, can greatly help save water and make the land flatness tolerance below +/-2cm which is much better than ordinary irrigation method.
1. It can then save water by 20% or more.
2. By precision land levelling operation, can reduce the unnecessary ridge area by 3-5% to make good use of farm land.
3. With increased land flatness, it can help make fertilizer evenly distributed and increase the utilization rate by around 20%. It will then increase the crop yield by 20-30% with better water irrigation effect and the crop quality at the same time.
4. Better control of weed and pest damage.
5. Crop production cost saving by 5-15%.
Technical Parameters
China Laisai Laser system

Laser Transmitter (Model LS526-H)

Electronic leveling one-way rotary laser is used for leveling construction of plane or slope in the large square, airplane,
farmland, and court field, etc, or used for the ceiling and ground leveling of large hall. It provides the high accuracy
horizontal and slope reference.
Features
Horizontal 360° rotary laser
Electronic leveling, warning when beyond auto-leveling range
Unbalance warning
VWS function
Specifications
Laser wavelength:635nm
Laser class: Class/
Working range (diameter):600m
Accuracy: ±0.075mm/m
Auto-leveling range: ±5°
Power: Ni-MH battery or 4* C battery
Sealing: IP54
Size: 6 7/8''x 5 1/2''x 7 5/16'' (175×140×186mm)
Weight: 4.4lbs (2Kg)

Receiver

Receiver (Model LS709)
Detection diameter:300m
Laser beam accept angle:360degree
Detection window:200mm
Precision:±2mm
Power: 12V

Controller

Controller (Model LS370)
Valve compatibility:Proportion time (PT) valve control
Input Voltage:12VDC
Temperature:-10~50






Packaging & Shipping
Packaging and Shipping
1,Packaging Details: nude packing.
2.5-3.5m Laser land leveler for tractor
2units fill in 20 GP container.
2,Lead Time: Shipped in 10 days after payment
Truemach Warranty
We grants our clients a 12 month period or 2000 hours warranty for any machine purchased from us. During the
warranty period,In case the defect of material,design,making,assembly or workmanship has occurred with spare partsin normal operation according to the machine manual.the defective part will be repaired or replaced free of charge at our discretion.
Truemach Service
1) We help customer to choose suitable machine. If you visit us, we can give onsite technical consultation, driver training and maintenance training in our factory.
2) We make driving test before leaving factory,That makes sure our client use the machine normally. Customer will receive machine as "0"hour all new condition.
3) We'll supervising goods ship in to container & take photos for customer. Our powerful shipping agency will offer best sea freight fee and responsible for detail treatment to goods.
4) Operation manual in English provided.If you need other language manual,we can provide you based on adding little cost
5) We prepare free spare parts in a toolbox for customer for emergency use.
6) We make record for every machine chassis no.and tracing them to get the latest information about the machine.
And give the best service timely.
7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for the machine
Certifications
