Durable Grinding Machine with Permanent Magnet Chuck and Syntec CNC Control

Product Description

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
At Cheng Yu Machinery Technology Co., Ltd., our unwavering commitment to excellence drives us to continuously refine and enhance our products. We reserve the right to modify specifications, mechanics, or designs at any time, ensuring our offerings remain cutting-edge and without prior notice or obligation.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

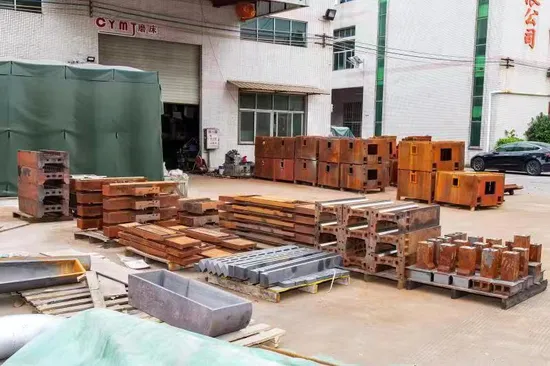

Cheng Yu Machinery Technology Co., Ltd., founded in Dongguan City, Guangdong, draws upon 30 years of Taiwanese expertise in grinding machine manufacturing. Our technical team embodies this rich heritage, bringing unparalleled experience and innovation to our products. As CNC machine tools rapidly evolve, they are embracing trends like high-speed, high-precision, and composite functionality. They also focus on intelligence, openness, parallel drive, networking, and eco-friendliness, setting the future direction for the industry. At Dongguan Chengyu Machinery Technology Co., Ltd., we specialize in crafting machine tools and accessories, driven by our core philosophy of 'technology, innovation, reliability'. Our meticulous quality policy ensures superior products and customer satisfaction. We start by analyzing customer requirements and use our advanced design and production capabilities to deliver high-quality, high-precision automated solutions. Our comprehensive quality management system, state-of-the-art equipment, and exceptional technology set us apart in the numerical control industry. Chengyu Machinery adeptly addresses market needs by designing and manufacturing high-precision CNC surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, gantry rail grinders, and sophisticated industrial robots. Our expertise extends to automated production lines and integrated applications. Below is an overview of our CNC grinding machine series: I. HS series 618 / 250 / 3060 / 4080 / 40100 models (available in servo and hydraulic types) Processing capabilities include Surface Grinding and Grooving. Featuring our exclusive Patented Hydraulic Control System (for hydraulic models). Functions: Equipped with versatile grinding programs for flat surfaces and groove cutting. Select feed modes from front, back, left, or right. Each grinding program offers memory feed mode. Experience the convenience of automatic shutdown upon grinding wheel overload. II. Models available in both servo and hydraulic types. Processing capabilities encompass Surface Grinding, Grooving, and Combined Scheduling. Incorporating our Patented Hydraulic Control System for hydraulic models. Functions: Diverse grinding programs including surface, groove, sole, side grinding, and unequal displacement. Grinding wheel dressing allows for bottom plane dressing. It automatically adjusts for rough/fine grinding, ensuring precision with automatic dressing and compensation during grinding cycles. Selectable feed modes: front, back, left, or right, with memory feed mode for each grinding program. Features include equidistant and non-equidistant grooving. 3. Our Four-axis CNC grinding machines are available in both horizontal and vertical orientations. Processing types include arbitrary equal division and skipping tooth processing. Waist circle processing, input AB size. Triangle fillet processing, input inscribed circle size B and fillet size R. Quadrilateral fillet processing, input side lengths A and B, along with fillet size R. Eccentric circle processing, input eccentricity and the diameters for start and end. Circle: Begin by entering both the starting and ending diameters to achieve precision and flawless curvature in your grinding projects. Arc: Enter the desired arc size and specify the rotation angle to create intricate shapes and designs with effortless precision. Step difference, rotation profile, and more: Customize your grinding process to suit a variety of applications with these versatile features. Processing Schedule: Easily save your process as a file for efficient and quick retrieval in future operations, streamlining your workflow.
