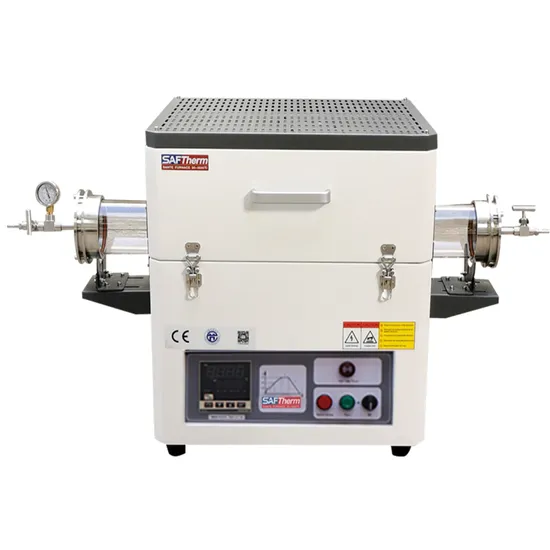

1200c Lab Heating High Purity Sintering Vertical Tube Furnace (STG-60-12)

Product Description

Product Description The 1200ºC STG Series products are mainly applied for the heat treatment of samples under vacuum or protective atmosphere, high quality chamber materials and stable temperature control system ensure the reliability of experimental data.The product uses the new-type ceramic fiber material as the furnace chamber material; the furnace tube material is fine, and the tube is sealed by stainless steel flanges on its both ends, the furnace can be work under the vacuum, there are air inlet and air outlet on the flange, also it can be filled in protective air, the precision needle-valve may adjust the air inlet flow rate..

Model	STG-40-12	STG-60-12	STG-80-12	STG-100-12
Chamber Size mm(W*D*H)	OD40x800mm	OD60x800mm	OD80x800mm	OD100x800mm
Furnace Type	Single Heating Zone Horizontal Split type, Benchtop
Usage	General purpose furnace ideal for general laboratory uses-gravimetric analysis, sintering, quantitative analysis and heat treatment
Furnace structure	1. The furnace is consist of heating system, gas system, vacuum system 2. chamber is consist of insulation material and heating elements and atmosphere boxes 3. Temperature controller is consist of PID temp. controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller
Max. Temperature	1200ºC
Continuous Temperature	1100ºC
Heating Rate	≤15ºC/min (suggest 10ºC/min for longer life using of furnace)
Heating Element	HRE
Chamber material	1. High quality 1300 degree fiber alumina as refractory lining, pure white color
Temp. Uniformity	±5°C
Thermocouple	N type
Temperature Controller	SHIMADEN PID 4 group 8 segments program
Electronic component	SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell	1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying
Safety Precautions	1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Optional Accessories	1. Alumina Crucibles 4. Vacuum pump 5. Vacuum gauge
Certification	ISO9001 CE SGS
Warranty	One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacemen

Detailed Photos
Certifications
Packaging & Shipping Standard Export Safe Packing:
1.The furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks

Delivery Time: 15 working days against receiving advanced payment
Port: Shanghai/Qingdao
Company Profile Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. Sante is one of the leading electric heat furnace manufacturers in China. The company designs, manufacturers and sells kinds of electric resistance furnaces and provides the professional solutions for customers in lab and heat industry. Sante has delivered its furnaces to more than 78 countries and the team is fully dedicated to working for their beloved career.

SANTE products cover 1000ºC~1800ºC Muffle furnace, Tube furnace, Vacuum furnace, Dental furnace, Industrial furnace, elevator furnace, car bottom furnace, degreasing furnace, heardening furnace, annealing furnace, pusher furnace, shutterpottery kiln and so on

Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment muffle furnace and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!

After Sales Service
Our customer

FAQ
1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
