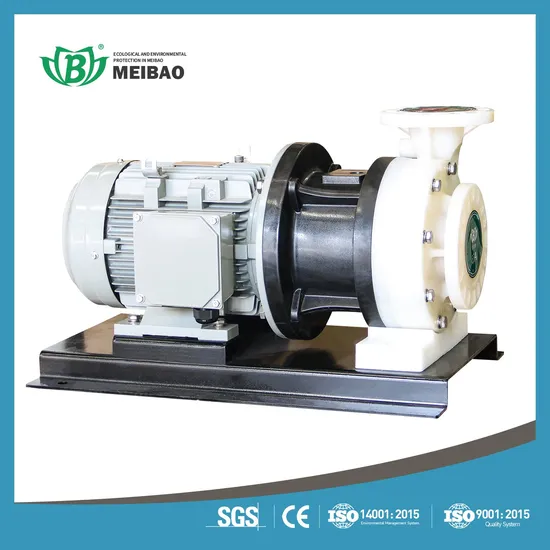

Acidic & Alkaline Resistantive Pump Perfluorinated Centrifugal Pump for Industrial Used

Product Description

Acidic & Alkaline Resistantive Pump Perfluorinated Centrifugal Pump for Industrial used Product Description
Chemical pump design concept:
Compared with the traditional chemical centrifugal pump, the pump's front cover, back cover, impeller, water tank, and shaft seal protection for the perfluorinated centrifugal pump are all high-quality PVDF raw materials. One injection moulding effectively improves the overall structural strength of the pump, acid and alkali resistance, corrosion resistance, high temperature resistance, oxidation resistance and other special properties. The new idling water tank is connected with the new mechanical seal (our invention patent) through the circulating pipe, which effectively ensures that the sealing fixed ring and the rotating end face have long-term coolant infiltration, which can effectively protect the sealing and will not quickly damage the sealing assembly due to air transport.
3) The flow channel of the pump body is based on the principles of fluid mechanics and kinematics, the establishment of scientific hydraulic model, volute structure design, combined with modern advanced manufacturing technology, to achieve excellent comprehensive performance, cost-effective, beautiful and high appearance level products.
Advantages of chemical pump
4) Vortex volute design, effectively improve fluid passing efficiency, reduce internal energy loss, improve pump efficiency.
5) With water tank cooling cycle protection system, can achieve zero load empty operation. Does not damage the seal assembly.
6) Scientific hydraulic model design.Combined with fluid motion analysis and modern high-precision manufacturing technology, the overall performance of the pump has been improved.
7) Grade A raw materials are used.High temperature and corrosion resistance.
8) Adopt imported SSIC wear plate and PTFE material expansion ring, reliable sealing, the seal is stable in long cycle operation.
Detailed Photos
Product Parameters

Model	Curve	Aperture		Power (HP)	Phase Number(Φ)	Poles (P)	Full flow 50Hz (L/min)	Full head 50Hz (m)	Weight (KG)
	50HZ	Inlet	Outlet
MCP-40012	a	50	40	1	3	2	232	10	21
MCP-40022	b	50	40	2	3	2	330	18	24
MCP-40032	c	50	40	3	3	2	356	21	27
MCP-50032	d	65	50	3	3	2	500	19	30
MCP-50052	e	65	50	5	3	2	560	24	39
MCP-65052	f	80	65	5	3	2	845	21	40
MCP-65072	g	80	65	7.5	3	2	990	26	58
MCP-65102	h	80	65	10	3	2	1000	31	64
MCP-100102	i	100	100	10	3	2	1637	24	65
MCP-100152	j	100	100	15	3	2	1850	30	93
MCP-100202	k	100	100	20	3	2	1950	31	100
MCP-125152(Vortex type)	a	125	125	15	3	2	3250	28	108
MCP-125202(Vortex type)	b	125	125	20	3	2	3750	38	132
MCP-125252(Vortex type)	c	125	125	25	3	2	3830	42	167
MCP-125302(Vortex type)	d	125	125	30	3	2	3850	48	190
