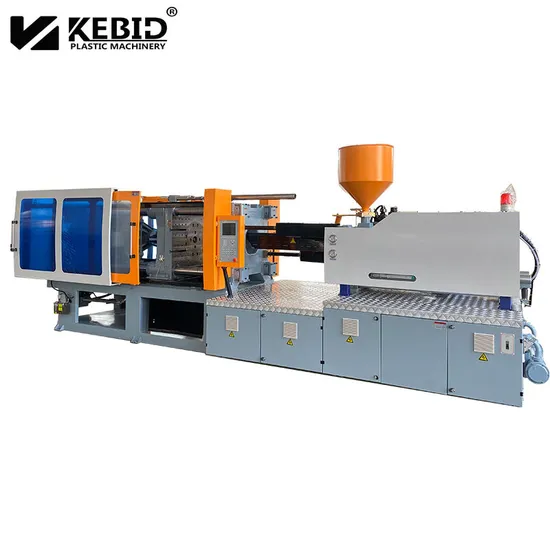

Big Horizontal Injection Machine for PVC Kbd9000 Chair Tray Production
| US$155,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
KBD9000
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Naked, Wooden Case, Wooden Pallet
Specification
900T
Trademark
KEBIDA
Origin
China
HS Code
8477101090
Production Capacity
50 Month
Product Description
| ITEM | KBD9000 | |||
| Injection unit | Unit | A | B | C |
| SCREW DIA | mm | 110 | 115 | 120 |
| SHOT VOLUME | cm3 | 4369 | 4879 | 5312 |
| (THEORETICAL) | ||||
| INJECTION WEIGHT(PS) | g | 3977 | 4440 | 4833 |
| INJECTION PRESSURE | Mpa | 130 | 133 | 121 |
| SCREW SPEED | rpm | 0-100 | ||
| CLAMPING UNIT | | |||
| CLAMPING FORCE | KN | 9000 | ||
| TOGGLE STROKE | mm | 1010 | ||
| SPACE BETWEEN TIE BARS | mm | 1080*1080 | ||
| MAX.MOLD HEIGHT | mm | 1100 | ||
| Min.MOLD HEIGHT | mm | 400 | ||
| EJECTOR STROKE | mm | 360 | ||
| EJECTOR TONNAGE | KN | 210 | ||
| OTHERS | | |||
| PUMP MOTER POWER | Kw | 37+40 | ||
| HEATING POWER | Kw | 61.3 | ||
| MACHINE DIMENSION(L*W*H) | m | 11.8*2.5*3.1 | ||
| MACHINE WEIGHT | T | 50 | ||
