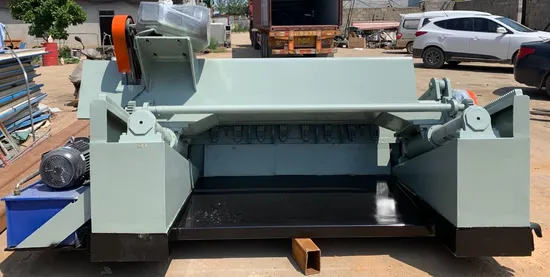

Reliable 10 Feet Log Peeling Lathe

Product Description

Product Description
In the production of plywood or other artificial boards,
log debarking is the first step in wood processing,
and the wood log debarker is the machine for this step.
Machine Structure:
The wood log debarker consists of peeling,
rounding, clamping structure, among others.
Usage:
Debarking and rounding logs to prepare for
subsequent wood processing.
Product Parameters

1	Model	BWZY-L3300-D600
2	Wood log diameter	100 - 600 mm
3	Knife Blade Size	3300 * 160 * 13 mm
4	Double roller	diameter 200 mm, up barbed, bottom spike
		350 # reducer, 2 pieces
		11 KW motor, 2 pieces
5	Single Roller	diameter 180 mm
		350 # hardened reducer, 2 piece
		11 KW motor, 2 piece
6	Hydraulic station	7.5 KW motor, 1 piece
7	Log correcting system	2.2 KW motor, 2 pieces
		80 * 350 mm
8	Total motor power	55.9 KW
9	Machine Size	5700 * 2000 * 1600 mm
10	Machine Weight	7500 KG

Above parameters are just for reference, they can be customized according to requirements.

Machine Features
Motor
1. High power output:
The wood debarker requires a large power to drive the cutting process. If the wood is hard, the motor must be able to provide enough power to overcome the resistance generated during the cutting process to ensure cutting efficiency and accuracy.
2. Stability and durability:
The wood log debarker needs to run at high load for a long time when working, so the motor design is stable and durable enough to extend the service life of the motor and avoid overheating and failure.
3. Shock resistance and vibration reduction :
Since vibration will be generated when cutting wood, the motor has strong shock resistance and vibration reduction design. By optimizing the structure and installation method of the motor, the impact of vibration on the motor itself and the surrounding environment is reduced, and the running stability and cutting quality are improved.

Machine Body
1. High-strength structure:
The machine body is made of high-strength steel to ensure that the equipment can withstand greater mechanical pressure and load, which can stably support the motor and its moving parts to avoid deformation during operation.
2. Rigidity and stability:
For the accuracy and quality of wood processing, the machine body has sufficient rigidity to reduce vibration and deformation,
thereby improving the accuracy and stability of cutting, especially when cutting at high speed, reducing the error caused by vibration.
3. Compact design and floor space:
The machine body design of the wood debarker is relatively compact, optimizing the floor space of different workshop environments, allowing the machine to be operated without taking up too much space.

Roller
1. Wear resistance:
During the wood log rounding and debarking processing,
rollers need to contact the wood surface, so they will be worn.
For extending the service life of the roller and reduce wear,
the roller surface is hardened and a wear-resistant coating is used, which can effectively reduce the damage caused by long-term use.
2. Prevent rollers from slipping:
The rollers need to ensure the wood will not skew during processing. Therefore, some gear-shaped convex structure are added to the surface of the rollers. This can enhance the friction between the wood and the rollers and improve the stability and accuracy.
3. Adaptability and adjustability:
Different shapes of wood require rollers of different sizes to adapt, so the rollers of the wood debarker have flexible adjustment functions.
The height and spacing of the rollers can be adjusted during the rounding process to adapt to different specifications and processing requirements of different woods.
1. Made of high-quality materials, good rigidity and stability of the whole machine
2. Large diameter of single and double rollers, using dual row cylindrical roller bearings and specific tooth shape
3. Quick rounding, 45 m / min
4. Precise size processing, less than 1 mm ( depend on the type of wood ) , saving wood
5. Safe operation, there are some protective covers around the machine
6. Low energy consumption
7. Environment friendly, the bark can be used to rise fire, or for providing a natural and beautiful decorative effect, and to play an important role in horticulture, construction field.
