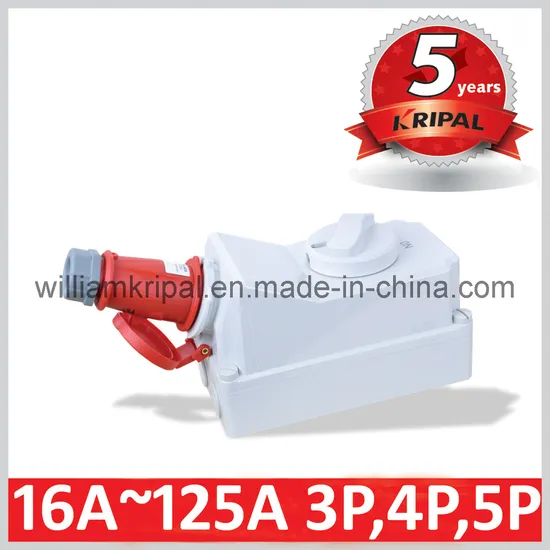

IP44 32A Industrial Plug Socket

Product Description

Product Description Industrial Plug socket
After insertion and switching on, the plug is interlocked in the ON-position.
After switching off and withdrawing, the switch is locked in the OFF-position.
1. Rated current: 32A;
2. No. Of poles: 3P+N+E
3. Voltage range: 380V-415V;
4. Power type: Three Phase
5. Protection degree: IP44;
6. Conductor cross-sectional area (mm2): 25-35
7. Material: NYLON PA6, PC, copper
8. Color: RAL3000 (Red);RAL9018 (White).
9. Advantages: Waterproof, dust-proof, impact resistance, anti-corrosion
10. Standards: EN/IEC60309-2, DIN VDE 0623
11. Warranty: Five years
12. Samples provided freely
13. Lead time: 20 days
14. Payment terms: T/T, L/C

We can provide full range of industrial plug socket
Protection	IP44/IP67
Current	16A, 32A, 63A, 125A, 250A, 420A
Pins	2P+E, 3P+E, 3P+N+E
Voltage	20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V
PLUG & SOCKET	Low voltage plug socket <50V
	Industrial plug, industrial socket
	Wall mounted socket, wall mounted plug
	Panel mounted socket, panel mounted plug
	Interlocked switched socket
BOX	Industrial portable socket box
	Industrial plastic socket box
	Power maintenance box (stainless)
	Power maintenance box (plastic)
	Industrial lighting box (plastic)
	Industrial lighting box (metal)
	Distribution box for exhibition box
	T. V / Film power distribution box
	Distribution box with power and compress air outlet
Accessories	Cap for 16A, 32A, 63A, 125A plug

Company Profile Zhejiang Kripal Electric Co., Ltd. Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.
OEM ODM KRIPAL AC 32A MCCB circuit breaker AC moulded case circuit breakers 4pole
Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development. With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of "Famous Export Brand".20A isolating switch
