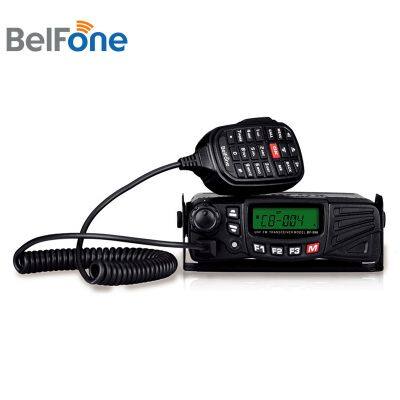

Belfone 25W UHF Vehicle Mounted Analog Mobile Radio for Car (BF-998)
Product Details
Product Details
Product Description
Product DescriptionBF-998 mobile radio
Frequency range UHF: 400-470
Channels: 128
Channel space: 25KHz/ 12.5KHz
Operatin temperature: -20ºC ~+ 60ºC
Antenna impedance: 50Ω
Working Voltage: 13.8V (±15%)
Working current: TX <8A, RX <1A,
Standby <0.4A
Frequency stability:≤±2.5ppm
Dimension: 158 (L) * 152 (W) * 50 (H) mm .
Weight: 1.04kg
BF-998 is one analog mobile radio with high power output, using ABS + PC shell material, equipped with scientific combination function keys and high-definition LCD display, making the communication more efficient and convenient, suitable for all kinds of vehicle communication environment. Square matrix hand microphone gives you clear voice, with DTMF signaling and remote kill, stun, manual dialing functions, it is worthy of trust for logistics, vehicle, and so on.
Product Parameters
| Transmitter | Receiver | ||
| Power Output | H:25W M:15W L:5W | Sensitivity | ≤0.2uV(width)/0.25uV(narrow) |
| Modulated mode | 16K0F3E(width) 8K5F3E(narrow) | Adjacent channel seletivity | ≥60dB(width)/55dB(narrow) |
| Spurious emissions | ≤-36dBm | Intermodulation rejection | ≥60dB(width)/55dB(narrow) |
| FM noise | ≤-40dB | Spurious response rejection | ≥60dB(width)/55dB(narrow) |
| Audio distortion | ≤5% | Audio output power | 2W(inter) 8W(outside) |
| Adjacent Power | ≥65(width)/60dB(narrow) | Audio distortion | ≤5% |
| Modulated limitation | ≤5KHz(width)/2.5KHz(narrow) | ||
