Multi Point Diamond Dresser Natural Diamond

Product Description

DIAMOND DRESSER with high quality natural diamond raw material
Single Point Diamond Dresser specially selected natural diamond particle are used, holding a perfectly high quality diamond welded into a point of handle, using the sharp-angled of diamond to turing grinding wheel according to natural grain of diamond, it exert the diamond surface's hardness and wear-resisting property. It is suitable for the of grinding wheels of precision truing.also can turing the general grinding wheel.
It offers different grades of diamond dresser.The proper selection of single point diamond dresser depends on the dimension of grind hardness.And the price depends on the grade and weight fo diamond.Also we can make the products according to customer's drawing,samples or requestment.
Purpose: Obtain accurate grinding wheel surface and shape; remove passivated and uneven grinding wheel surface layer, and restore sharp and flat grinding wheel surface
Scope of application: In addition to diamond, cubic boron nitride grinding wheels, all other types of grinding wheels for ceramics, rubber, resin and clay.
Factors affecting grinding wheel dressing:
1. Diamond quality, size and wear resistance are selected according to the sand model and the accuracy requirements of the workpiece to be ground
2. The coolant is turned on, and there must be a certain pressure and flow;
3. There is a certain positional relationship between the installation of the dressing tool and the grinding wheel stroke. There should be no gap between the installation handle and the stroke guide rail.
4. The feed rate and speed are confirmed according to the model of the dressing tool and the workpiece to be ground

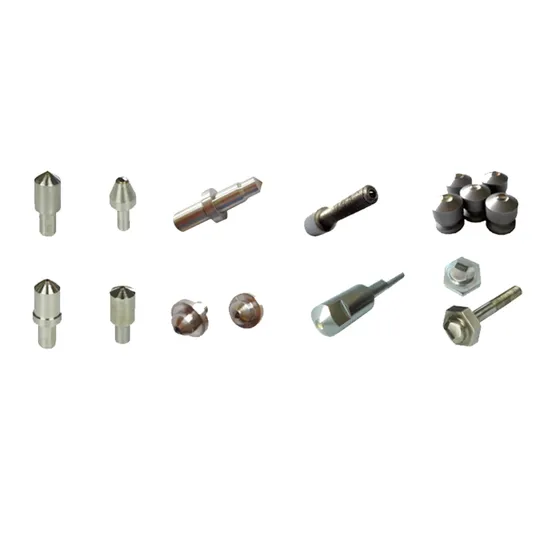

Detailed Photos Detailed size

Item Code No.	Size of Shank		Diamond Size
	Inch	mm
1001	1/8 X 1	3.20 x25	0.25 Carat
1002	1/4 x 1.5	6.35 x 38	0.25Carat
1105	1/4 X 3	6.35 x76	0.5Carat
1110	1/4 X 3	6.35 x76	1.0 Carat
1201	3/8 x 2	9.50 x 50	0.25Carat
1202	3/8 x 3	9.50 x 76	0.25 Carat
1205	3/8 x 3	9.50 x 76	0.5 Carat
1210	3/8 x 3	9.50 x 76	1 Carat
1215	3/8 x 3	9.50 x 76	1.5 Carat
1302	7/16 x 3	11.1 x 76	0.25 Carat
1305	7/16 x 3	11.1 x 76	0.5Carat
1310	7/16 x 3	11.1 x 76	1 Carat
1315	7/16 x 3	11.1 x 76	1.5Carat
1320	7/16 x 3	11.1 x 76	2 Carat
1402	1/2 x 3	12.7 x 76	0.25 Carat
1405	1/2 x 3	12.7 x 76	0.5Carat
1410	1/2 x 3	12.7 x 76	1 Carat
1412	1/2 x 3	12.7 x 76	1.25 Carat
1420	1/2 x 3	12.7 x 76	2 Carat
1430	1/2 x 3	12.7 x 76	3 Carat
1502	3/8 x 6	9.50 x 152	0.25 Carat
1505	3/8 x 6	9.50 x 152	0.5 Carat
1510	3/8 x 6	9.50 x 152	1 Carat
1515	3/8 x 6	9.50 x 152	1.5 Carat
1520	3/8 x 6	9.50 x 152	2 Carat
1602	7/16 x 6	11.1 x 152	0.25 Carat
1605	7/16 x 6	11.1 x 152	0.5 Carat
1610	7/16 x 6	11.1 x 152	1 Carat
1612	7/16 x 6	11.1 x 152	1.25 Carat
1615	7/16 x 6	11.1 x 152	1.5Carat
1620	7/16 x 6	11.1 x 152	2 Carat
1625	7/16 x 6	11.1 x 152	2.5 Carat
1702	1/2 X 6	12.7 x152	0.25 Carat
1705	1/2 X 6	12.7 x152	0.5 Carat
1710	1/2 X 6	12.7 x152	1.0 Carat
1715	1/2 X 6	12.7 x152	1.5 Carat
1720	1/2 X 6	12.7 x152	2.0 Carat
