Short Cycle Melamine Laminating Hot Press Machine for Plywood

Product Description

Product Parameters

Model	BDQRY-4*8-2000T-1
Norminal pressure	2000 tons ( 20000 KN)
Lamination face number	double face laminating
In feed direction	from 2440 mm side
Motor power	29 KW
Hot press plate size (top)	1400*2600*150 mm , six inlet and output
Hot press plate size (bottom)	1400*2600*140 mm, six inlet and output
Opening size	250 mm
Main pistons	diameter 360 mm, stroke 250 mm, 8 pieces
Lifting pistons	diameter 80 mm, stroke 260 mm, 4 pieces
Allowed working pressure	no more than 25 M pa
Hot press plate temperature	not less than 250 degree centigrade
Heating medium	heat transfer oil
In feed speed	adjustable
Main frame height	3600 mm , 4 feet by 8 feet standard
Main frame steel thickness	70 mm
Hydraulic system	servo motor driving high efficiency system
In feed car	servo motor driving, 3.5 second per round
Synchronous device	linkage and expansion sleeve structure

Usage
1. Manufacture of artificial board:
Hot press can be used to manufacture artificial board, such as plywood, particle board, etc.
After the wood is cut into thin sheets, the adhesive is added and placed in the hot press for high temperature
and high pressure hot pressing treatment, so that the wood sheets are bonded to form.
2. Molding of wood products:
hot press can also be used to manufacture wood products, such as wood flooring, wooden furniture, etc., through hot pressing, can make the wood have the required shape and strength.

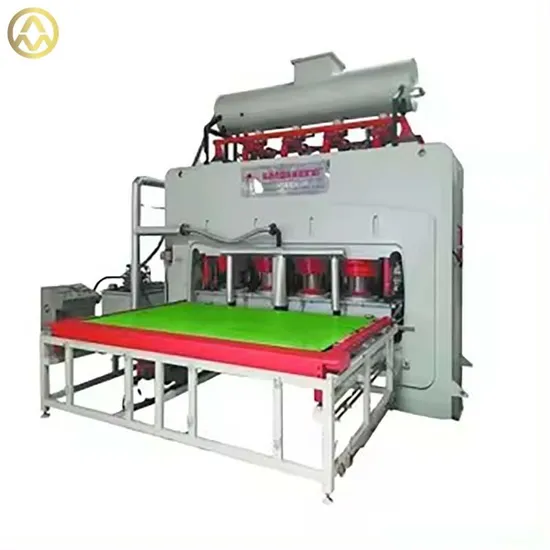

Machine Photos for Reference
Our Service
Pre-sales service
According to the needs of customers, to provide data, pictures, videos for reference, to give timely answers to customer questions, to make customers satisfied is our purpose
After-sales service
We offer installation, one year warranty, lifetime parts replacement and repair services. Customers can contact us anytime and anywhere by email, and if necessary, we will let professional technicians to solve the problem.
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1-wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.2-plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3-Particle board machine and MDF board machine.4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener. Certifications

Our Advantages

1. Rich experience and professional design
We have lots of experience in exporting plywood machine production.
The layout of the factory is designed reasonably to meet safety production and high efficiency.
2. Competitive price
ZHONGHE has own factory, with the same configuration, the price is competitive.
And we are familiar with the Chinese market, our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the production line until it runs well and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provides one-stop service, including market analysis and professional technical consultation, raw materials, equipment installation, personnel training, professional after-sales service team, renovation of old equipment.
5. Quality control
We guarantee strict quality control of equipment in production, before leaving the factory and a complete quality management system for purchased parts.
Customers are always welcome to make videos or come to the factory to know the production status.

FAQ
Frequently Asked Questions
About Customization :
Product parameters are for reference, all of our products size, yield, color, etc., can be customized
Delivery date:
25-30 days
Price changes:
The price of the product will change according to the real-time price of the raw material
Nature of the Company:
We are a company integrating industry and trade, with our own factory
Can I visit the factory:
Welcome
