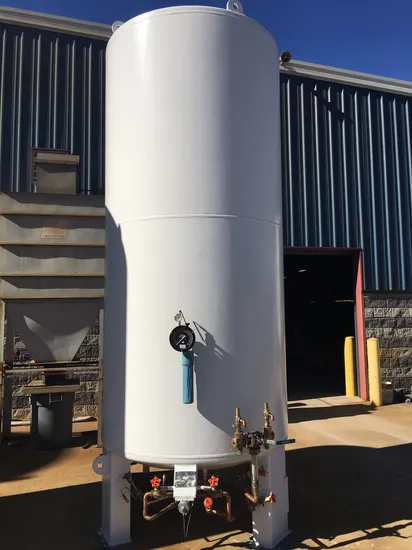

High Quality 5m3 2.16MPa Liquid CO2 Cryogenic Storage Tank in Stock for Sale
| US$13,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CNJX-DW5
Condition
New
Customized
Customized
Certification
ISO9001, QS, GS, TUV, GB
Tank Marerial
Ss Steel
Type
Low Temperature Storage & Transportation Equipment
Storage Objects
Liquid
Working Pressure
2.16MPa
Design Pressure
2.3MPa
Tare Weight
3070kg
Max. Filling Volume for CO2
5285kg
Overall Dimension
~3900*1916*2162mm
Installtion Type
Vertical or Horizontal
Application
to storage Lco2
Transport Package
for Exporting Standard Shipping Package
Specification
2m3
Trademark
CNJX
Origin
China
HS Code
86090012
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
1916.00cm * 2162.00cm * 3900.00cm
Package Gross Weight
3100.000kg
Product Description
High Quality 5m3 2.16Mpa Liquid CO2 Cryogenic Storage Tank in Stock for Sale Product Description Low temperature liquid carbon dioxide storage tank (cryogenic liquid CO2 storage tank) is a double-layer container composed of inner and outer containers, which is a vacuum powder insulation type.It can be divided into two types: vertical installation and horizontal installation.
The inner container material is 16MnDR, and the outer container material can be Q235-B or 16MnR according to different user regions.
The inner and outer containers are filled with insulation material pearlescent sand and vacuumed.
Product Parameters
| Name | Liquid CO2 storage tank |
| Working pressure | 2.16Mpa |
| Design pressure | 2.3MPa |
| Effective volume | 5m3, 10m3, 15m3, 20m3, 30m3, 50m3, 60m3 |
| Working temperature | -40 ºC |
| Insulation performance | The insulation material is filled with pearlescent sand in the hot state and the interlayer is vacuumed. After the interlayer is sealed, the vacuum degree standard is: Effective volume: less than or equal to 10m, with a vacuum degree of ≤ 2Pa, more than 10m, less than or equal to 50m, with a vacuum degree of ≤ 3Pa, more than 50m, less than or equal to 100m, with a vacuum degree of ≤ 5Pa. With exquisite technology, unique filling process, and quality assurance commitment, we aim to achieve the best insulation effect. |
| Security Technology Features | The low-temperature liquid carbon dioxide storage tank adopts a combination and safety system valve, which uses two sets of safety valves to work simultaneously. During regular calibration of the safety valves, one side can be closed while the other side continues to work to ensure the safe operation of the storage tank. |
| Operating system | A pressure gauge, differential pressure level gauge, and liquid level comparison gauge are installed on the upper part of the storage tank container, which can monitor the storage capacity and pressure changes of the container at any time, making it convenient for filling and draining operations. |
| Detecting system | The lower part of the storage tank is equipped with dedicated tank vacuum detection, vacuum gauge, and vacuum valve, which can be used regularly or at any time to detect the vacuum degree of the interlayer, ensuring the safe operation of the storage tank. |
Packaging & Shipping
