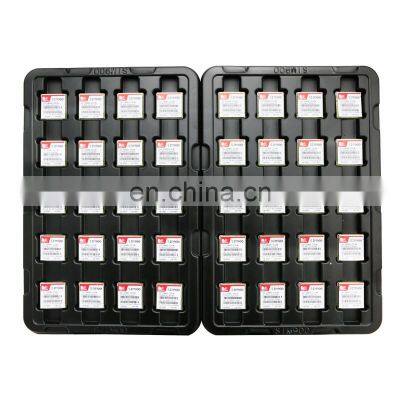

SIM900 SIMCOM GPRS gps wifi gsm MODULE

Product Description

Product Description
DescriptionSIM900 GSM/GPRS Module• SIMCom presents an ultra compact and reliable wireless module-SIM900. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions. • Featuring an industry-standard interface, the SIM900 delivers GSM/ GPRS 850/ 900/1800/ 1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption.• With a tiny configuration of 24mm x 24mm x 3 mm, SIM900 can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.General features* Quad-Band 850/ 900/ 1800/ 1900 MHz* GPRS multi-slot class 10/8* GPRS mobile station class B* Compliant to GSM phase 2/2+Class 4 (2 W 850/ 900 MHz)Class 1 (1 W 1800/1900MHz)* Dimensions: 24*24*3mm* Weight: 3.4g* Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)* SIM application toolkit* Supply voltage range : 3.2 ... 4.8V* Low power consumption: 1.0mA(sleep mode)* Operation temperature: -40°C to +85 °C Specifications for Fax* Group 3, class 1 Specifications for Data* GPRS class 10: max. 85.6 kbps (downlink)* PBCCH support* Coding schemes CS 1, 2, 3, 4* CSD up to 14.4 kbps* USSD* Non transparent mode* PPP-stack Specifications for SMS via GSM/GPRS* Point to point MO and MT* SMS cell broadcast* Text and PDU mode Software features* 0710 MUX protocol* embedded TCP/UDP protocol* FTP/HTTPSpecial firmware* FOTA* MMS Java (cooperate with Iasolution)* Embedded AT Specifications for Voice* TricodecHalf rate (HR)Full rate (FR)Enhanced Full rate (EFR)* Hands-free operation(Echo suppression)* AMRHalf rate (HR)Full rate (FR) Interfaces* Interface to external SIM 3V/ 1.8V* analog audio interface* RTC backup* SPI interface (option)* Serial interface* Antenna pad* I2C* GPIO* PWM* ADC Compatibility* AT cellular command interface Certificates* CE* FCC* ROHS* PTCRB* GCF* IC* ICASA* REACH Carrier Approvals* AT&T* NCC* Anatel* Rogers* Orange* VodafoneWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
