Dialead Stone Crushing Machine for Natural Stone Granite Marble Quartz with Favorable Price From China

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.

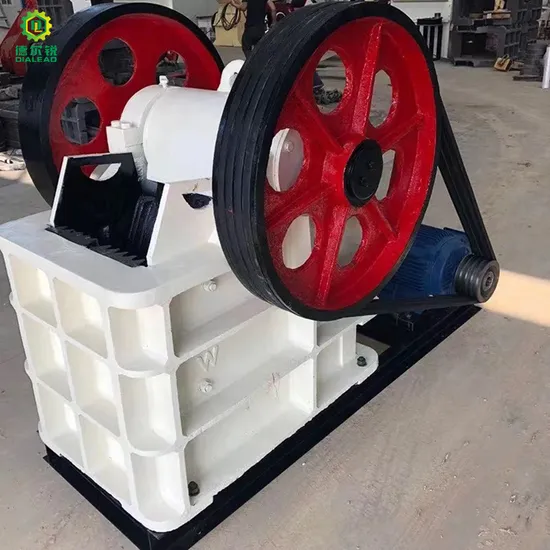

1.Jaw Crusher Machine Introduction:Jaw crusher are ideal for primary and secondary crushing processing. With the increase of production, our jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment,Positive setting adjustment is easy.
Main Features and Benefits1. Simple structure and easy maintenance.2. Stable performance and low operating cost3. Flexible discharge opening setting4. High resistance to friction, abrasion and compression with longer operating life span.Operating PrincipleThis jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Technical Data
All technical data can be customized to meet your specific needs.

Model	Max Feeding Size (mm)	Capacity (t/h)	Speed of Spindle (r/min)	Output Size (mm)	Power (kw)	Dimension (L*W*H)mm	Weight (KG)
PE150*250	125	1~3	285	10~40	5.5	875*745*935	1160
PE250*400	200	5~20	300	20~80	15	1410*1310*1386	2572
PE150*750	120	8~35	320	10~40	15	1280*1610*1081	3350
PE400*600	340	14~36	250	40~100	37	1700*1732*1658	5800
PE250*750	210	15~45	300	15~50	30	1695*1920*1646	5000
PE250*1000	210	15~50	330	20~50	30	1550*1990*1370	6800
PE250*1200	210	20~70	320	20~60	45	1670*2190*1430	9000
PE500*750	400	30~80	250	50~120	45	1990*1876*1821	9000
PE600*900	480	56~192	250	75~200	75	2792*3828*2529	18900
PE900*1200	650	180~350	180	100~250	110	5000*4471*3280	55000

Machine Details
Packaging & Shipping
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
