4000 DC 12V Electric Winch
| US$55.00-110.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
TW4000
Type
Electric Winch
Power Type
Permanent-magnet DC
Pull Direction
Forward
Electric Winch Model
Tw4000
Working Voltage of Electric Winch
Low Voltage
Brand
Hb
Applicable Environment
Beach
Certification
CE
Transport Package
Export Carton Box
Specification
404(L) mm X 172.5 (W) mm X126.6 (H) mm
Trademark
HB
Origin
China
HS Code
84253190
Production Capacity
6000/Per Month
Product Description

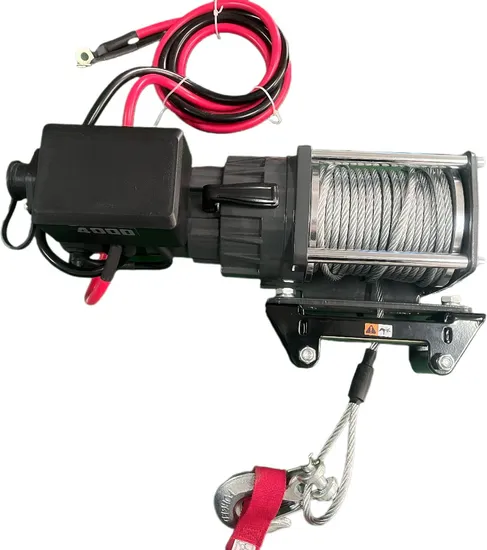

The 4000 DC has heavy-duty pulling power; perfect for loading a heavy vehicle onto a trailer or winching the big loads at work. With durable steel rope, a roller fairlead, and a sturdy remote control, this winch is ready to go to work.Specifications
Rated line pulls: 4000 lbs. (1814 kg)
Motor: Permanent magnet motor (Input Power)1.61 hp / 1.2kw (DC 12V)
Switch type: Remote with 12'(3.7m)Lead
Drum size: Ø 2.38" x 4.35 in(Ø 60.5 x 110.5 mm)
Hole pattern: 3 holes
Gear reduction ratio: 176:1
Overall dimensions: 15.90" x 6.79" x 4.98 in (404 X 172.5 X126.6 mm)
Gear Train: 3 stage plantary
Clutch: Lever-Muti-directional
Brake: Dynamic and mechanical braking
Fairlead: Roller
Electrical Leads: 2-6'(1.8m) X6 gauge cable
Rope: Ø 4/17" x43'(Ø 6.0mm x 13 m )
Mounting bolt pattern: 2.5"x 3"(63.5 x 76 .2 mm)
12V DC PERFORMANCE SPECS(first layer)
| Line pull | Line speed | Motor | Pull by layer |
| lbs. (kg) | ft/min (m/min) | Current | Layer/Lbs.(kg) |
| 0 | 17.4 (5.3) | 40 amps | 1/4000 (1814) |
| 500 (227) | 15.4 (4.7) | 65 amps | 2/3410 (1547) |
| 1000 (454) | 13.8 (4.2) | 90 amps | 3/3170 (1438) |
| 1500 (680) | 12.8 (3.9) | 110 amps | 4/2950 (1338) |
| 2000 (907) | 11.5 (3.5) | 135 amps | |
| 2500 (1134) | 10.5 (3.2) | 160 amps | |
| 3000 (1361) | 9.5 (2.9) | 180 amps | |
| 3500 (1588) | 9.2 (2.8) | 195 amps | |
| 4000 (1814) | 8.2 (2.5) | 215 amps | |
| 4500 (2041) | 7.2 (2.2) | 240 amps | |
| 5000 (2268) | 5.9 (1.8) | 280 amps | |
| 5500 (2495) | 4.6 (1.4) | 315 amps |
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
we can sure within 15-20 days delivery time, but depends on the quantity !
