Automatic Veneer Splicing Stitching Sewing Machine / Wood Veneer Splicer /Veneer Making Machine From Gtco with CE ISO

Product Description

Veneer Splicing Machine Woodworking Automatic Veneer Plywood Splicer Splicing Stitching Sewing Machine Product Description
Automatic longitudinal veneer jointing machine, which is controlled by a computer, which is a device that splices small pieces of veneer into a complete veneer of the required size.
You only need to select veneer thickness in the computure, and it will automatically adjust all the air pressure and memorize the parameters used before.The electrical components are from Schneide, MEANWELL and other brands.Module temperature control, suitable for splicing 0.3-4.0mm veneer.
The upper and lower crawler tracks are driven by the same variable frequency motor to ensure synchronization of the running speeds of the upper and lower crawler tracks; stepless speed change is provided, and the speed is controlled at 5-50 meters/minute.
Product Parameters

Splicing thickness	0.35-2mm, 2-6mm depend on different requirement
Splicing width	40mm-unlimited
Splicing length	300mm-unlimited
Splicing speed	5-50M/min
Working table height	920mm
Stitching temperature	100-220ºC
Working pressure	5kgf/cm2
Power	8.5KW
Machine size	2400*2100*2000mm
Weight	2000KG
Voltage	110V, 220V, 380V, 415V, etc.

Our Advantages
Advantages:
1. Precision Engineering: Our Veneer Splicing Machine leverages state-of-the-art technology to achieve precise cutting and splicing of veneer sheets, ensuring seamless joints and impeccable finishes.
2. Efficiency and Productivity: By automating the splicing process, our machine significantly reduces production time and labor costs, enabling woodworking professionals to boost productivity without compromising on quality.
3. Versatility: With adjustable settings and customizable features, our machine accommodates a wide range of veneer types and thicknesses, making it suitable for diverse woodworking projects and applications.
4. Quality Assurance: Built with durability and reliability in mind, our Veneer Splicing Machine undergoes rigorous testing to ensure consistent performance and long-term operational excellence, giving our customers peace of mind and confidence in their investment.
5. User-Friendly Interface: Featuring an intuitive control panel and user-friendly interface, our machine is designed for ease of operation, allowing both seasoned professionals and novice users to harness its full capabilities with minimal training.

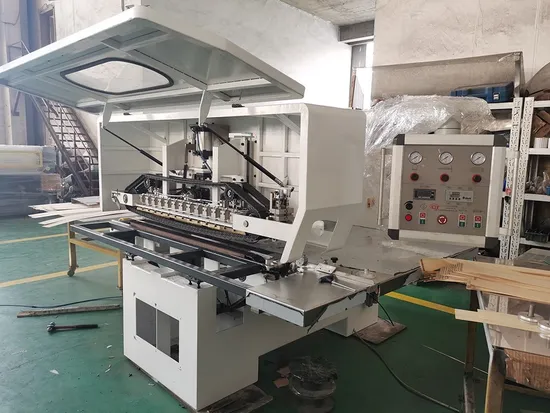

Detailed Photos
Related Machine
Full Automatic Veneer Wireless Horizontal Splicer Splicing Machine, cross-feed veneer splicing machine, veneer splicer.
Veneer guillotine, veneer cutting machine, veneer/paper cutter equipment.
There are single knife and double knife for max.4200mm length.

Veneer clipper, veneer cutting machine for sliced cut veneer
Our Other Products
Spindleless veneer peeling line, rotary cut veneer production line, veneer peeling machine.
Plywood production line, plywood making machine, plywood processing machinery.
This line include glue spreader, lift table, overturning machine, cold press, hot press, sanding machine, plywood trimming saw, etc.
Forklift :
2.0Ton, 3.0Ton, 3.5Ton, 5.0Ton, 6.0Ton, ---10.0Ton
Electric, Diesel, gas type.
Wheel loader
