Advanced Recycle Machine for PS Foam Granules Recycling
| US$35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HLFSJ-150/100
Material Processed
Foam
Plastic Type
EPS
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Capacity
180-220kg/H
Inlet Width of Grinder
1420mm
Grinder/Crusher
Included
Max. Delivery of Blower
50meters
Installed Power
144kw
Transport Package
Standard Packaging
Specification
20x3.5x6.1m
Trademark
Holin
Origin
China
Production Capacity
10sets
Product Description
Plastic Recycle Machine ---Die-Cutting EPS Recycle Machine with big outputMachine Features
--Big silo with cyclone separator device
--Equipped with wide inlet grinder, blower, the max.transport distance is 50m

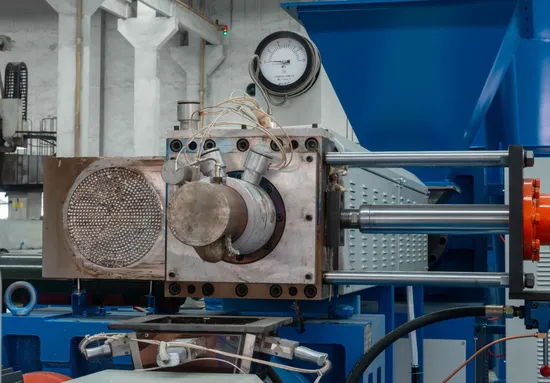

--Primary extruder and secondard extruder are all with hydraulic screen changer
--With die-cutting type and straight cutting type
--Easy operation, stable performance, high quality and high automation,etc.
--With reducing screw
Specification
| Model Parameters | Unit | HLFSJ-80 | HLFSJ-130 | HLFSJ-150/120 | HLFSJ-190/150 |
| Capacity | Kg/h | 30-50 | 100-180 | 180-220 | 300-400 |
| Inlet width of crusher | mm | / | 1100 | 1420 | 1420 |
| Power of crusher | kw | / | 22 | 30 | 30 |
| Max delivery of blower | m | / | 50 | 50 | 50 |
| Power of blower | kw | / | 4 | 4 | 5.5 |
| Volume of Silo | m2 | / | 9 | 9 | 9 |
| Diameter of the primary screw | mm | 80 | 130 | 150 | 190/150 |
| L/D | / | 18 | 18.5:1 | 18.7:1 | 21.4:1 |
| Diameter of the secondary screw | mm | / | 100 | 120 | 130 |
| L/D | / | / | 11:1 | 11:1 | 12:1 |
| Installed power | kw | 50 | 90 | 144 | 261 |
| Cooling water pressure | Mpa | 0.2 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Installation size(LxWxH) | m | 6x1.5x1.9 | 17x3.5x5.5 | 20x3.5x6.1 | 20x3.5x6.1 |
| Weight | T | 2 | 8 | 10 | 12 |
Photos
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: What material can this machine process? A: It can process EPS, foam PS
