Sliding Coefficient of Friction Meter Test Machine Testing Equipment Instrument

Product Details

Product Description

Product Description
Product Description

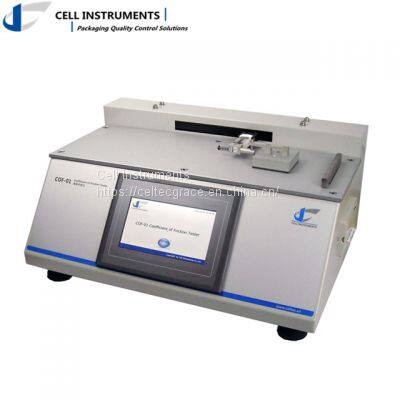

Static And Kinetic Friction Tester ( C.O.F ) determines static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, etc.
Static And Kinetic Friction Tester ( C.O.F ) test Principle
The two samples are placed together. A long strip sample is fixed on the flat surface and another squared sample is applied force by a sled. The friction force is measured when they slip against each other.
Standards
ASTM D1894, ISO 8295, TAPPI T816, GB 10006
Static And Kinetic Friction Tester ( C.O.F ) technical Features
PLC control and touch screen operation
Real-time display of test data, results, and curves
Both the static and kinetic coefficient of friction can be measured
In accordance with multiple international standards
Test results calculation, analysis, and curve superposition
RS232 output and professional software(optional)
Microprint of easy printing of test result
Technical Specification

Load Cell	5 N
Accuracy	0.5 F.S.
Stroke	As Required
Sled	200 g 63.5mm*63.5mm(Customization Available)
Test Speed	100mm/min (ISO), 150mm/min (ASTM)
