255z UTV System Assembled with 862*255*550 Rubber Track
| US$2,500.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
255Z
Structure
Without Door
Displacement
150CC
Transmission System
Shaft Drive
Fuel
Gas / Diesel
Brake Type
Disc Brake
Maximum Speed
>75 km/h
Brand
Puyi
Condition
New
Width
255mm
Length
862mm
Height
550mm
Net Weight
34kg
Carry Capacity
1000kg
Warranty
12 Months
Packaging
Bare Packing and Pallet
Sprocket Center Distance to The Ground
403.5mm
Transport Package
Bare Packing &Box
Specification
255Z
Trademark
PY
Origin
Shanghai, China (Mainland)
HS Code
8431499900
Production Capacity
500 Per Month
Product Description

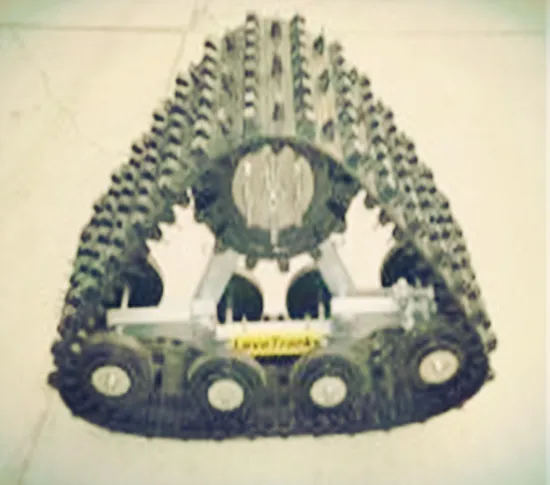

The rubber track system is mainly composed of the rubber track, triangular frame, driving wheelsSupporting wheels, guide pulley as well as connecting plated device...
It's an integrated mechanical assembly which can make your car run well at all terrain whatever is
Snow, mud, sand, loose surface, even hill terrain...
We can also design the mounting hole according to your wheel bolt pattern so that you can
Install it on your car directly without using complicated tools...
The features and advantages of the rubber track system:
1. The track system is light weight building, using lightweight wheels and structural steel frame or
Aluminum frame, that keep the track units durable, without sacrificing performance.
2. Our track system is all season tracks, molded rubber composite design provides additional stability.
The track is designed without perforated openings, preventing debris from entering through the
Track. Specially designed internal drive lugs continually work on sand, snow, mud out of the track,
Keeping Track and framework clear of debris.
| Size | Length | Width | Height | Net Weight | Loading bearing | Ground contact length | Sprocket Center Distance to the Ground | Applicable Types of Vehicles |
| PY-255A | 810mm | 255mm | 640mm | 70kg | 1.2Tons | 530mm | 400mm | 200CC-800CC ATV etc. |
| PY-255B | 880mm | 255mm | 610mm | 40kg | 1.2Tons | 550mm | 420mm | 200CC-500CC ATV/ UTV etc. |
| PY-255C | 862mm | 255mm | 550mm | 34kg | 3Tons | 550mm | 403.5mm | SUV /ATV /UTV etc. |
| PY-330A | 880mm | 330mm | 500mm | 30kg | 1.2Tons | 560mm | 430mm | ATV/UTV etc. |
| PY-300A | 1150mm | 300mm | 300mm | 30kg | 1.5Tons | 720mm | 420mm | |
| PY-280A | 600mm | 280mm | 1080mm | 80kg | 3.0Tons | 700mm | 420mm | SUV etc. |
| PY-280B | 1100mm | 280mm | 640mm | 90kg | 3.0Tons | 700mm | 420mm |
