| US$160.00-180.00 | 1 Piece (MOQ) |
| Product | Spec. | Number | Remarks |
| LED light | DC40W | 1 | High power LED chips, 3 years warranty. Luminous flux: 4000lm Color temperature: 3000~6000k Chromaticity: 80 |

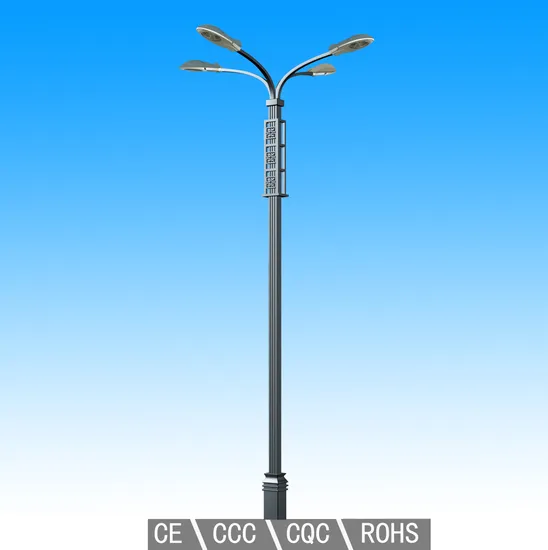

Lamp pole and solar powered support | 6m | 1 | Q235B,The whole surface of the lamppost is hot-dip galvanized and sprayed, and the wind resistant grade is 10 grades, with a life span of more than 20 years, including solar powered support, and 10 years warranty. See the blueprint. |
| Foundation cage | Φ16Round steel Height:75cm | 1 | Q235B |
| Built-in cable | 10m | 1 | RVV2*1.5m^2 |
| Protection class:IP67 |
| Light source:20W-200W LED |
| Rated voltage and frequency:12-24-220V(±10%) 50Hz |
| Caliber:60mm |
| Protecting class against electric shock:Type 1 |
| Die-cast aluminum casing,coated with powder polyes ter after anti-corrosive treatment |
| A using unigue Distribution lens |
| Fasteners stainless steel screws |
| Installation height:4m-13m |
| High quality steel,coated with powder polyester after hot galvanizing treatment |
| Pole Height | Aperture (mm) | Thickness (mm) | Flange (mm) |
| 6M | 65~140 | 2.75 | 260*260*12 |
| 7M | 70~137 | 2.75 | 260*260*14 |
| 8M | 70~160 | 3 | 280*280*14 |
| 9M | 80~185 | 3.25 | 300*300*16 |
| 10M | 80~185 | 3.25 | 320*320*16 |
| 11M | 85~200 | 3.5 | 400*400*18 |
| 12M | 85~200 | 4 | 400*400*20 |
| 13M | 100~230 | 4 | 400*400*20 |
