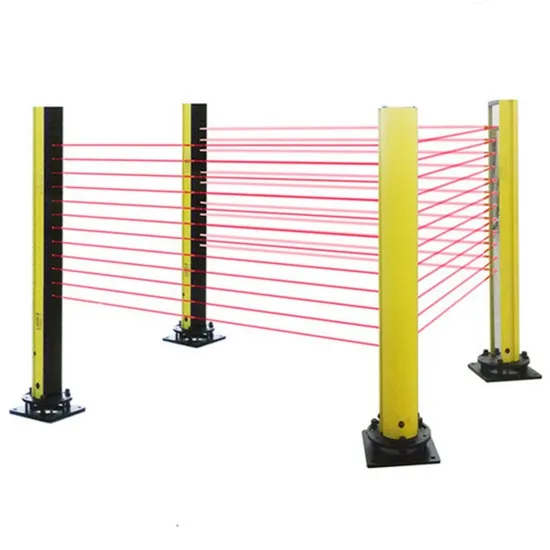

Infrared Sensor Light Curtain Danger Protection Device NPN PNP Output Infrared Safety Light Curtain for Automated Production Line Protective Device

Product Description

Product Description 1. Long protection distance;
2. Singel, two or three sides protection area;
3. Simple mounting and wiring, complete range of models;
4. Perfect self-checking function;
5. Good immunity to the surrounding lights and electromagnetic;
6. Good performance of anti-vibration,water and dust;
7. NPNx2 or PNPx2 output, controller provide double relay contacts output.
8. Specially designed bracket,easy to adjust direction,height and align light
Detailed Photos
Product Parameters

Protective ange	1 side	2 sides	3 sides
	0~40000mm(Standard)	0~30000mm(Standard)	0~24000mm(Standard)
	0~120000mm(Extra-long)	0~80000mm(Extra-long)	0~60000mmExtra-long)
Protective height	Light axis pitchx(beams-1)
Light axis pitch	40mm.80mm.160mm,320mm
Power supply	DC12V~24V
Working current	<200mA
Loading current	<200mA
Response time	<10ms
Diagnostic coverage	>99%
MTTFD	120a
Sealing level	IP65
Operation temp.	-10°ºC~+55*ºC
Humidity	20C,RH ≤85%
Immunity to light	10000Lux(Angle of incidence ≥5°)

More information, please contact us! Applications
