Heavy Duty Tile Ceramic Stone CNC Engraving Machine 5.5kw 1300*1800mm

Product Description

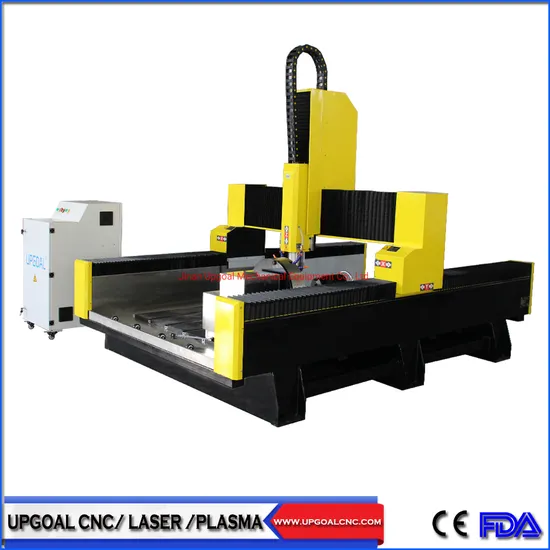

Heavy Duty Tile Ceramic Stone CNC Engraving Machine 5.5KW 1300*1800mm
Features
1.Adopted strong heavy duty T type sqaure steel tube structure strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation.

2. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.
Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.
3.XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.
4.Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.

5. Powerful 5.5kw water cooling spindle(ER25), easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear. Bothway tools cooling system, effectively improve tools life time.
6.China famous Chuangwei stepper motor and Leadshine stepper driver for XYZ-axis, high precision, faster speed and more stable. Dual motor and driver for Y-axis,ensuring the stable moving.
7. RichAuto DSP A11E offline control system with USB interface which is completely off from Computer. More Humanized design with simple and convenient handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of curve and straight line, more perfect curve working and Spindle start up and stop automatically.
8.Independent control cabinet, keeps the computer away from dust during working.
9.4th axis rotary axis, diameter 350mm, working length 1200mm, reduction gear transmission, for stone cylinder carving.
10. Semi-auto lubrication sysetem, more convenient and easy for whole machine lubrication.
11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.
12.Special several processing 0 point saving method.
13.Memory of break point and power failure,ensuring continue working after breaking point or next time processing.
14.Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.
Technical Parameters

Effective working area	1300(X)mm*1800(Y)mm*500(Z)mm
4th axis rotary axis	Diameter 350mm, working length 1800mm, reduction gear transmission
Materials	Heavy duty T type steel pipe welded structure
Working table	Strong aluminum alloy T slot
Cooling system	Stainless steel water slot cooling( Integrated)
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis
Driving mode	Stepper motor (Chuang wei) and driver (Leadshine & Yako) for XYZ-axis
Spindle motor	5.5kw water cooling, ER25
Spindle speed	0-24000rpm
Inverter	Sunfar
Voltage	AC 380V±10%, 50/60Hz, three phases or AC 220V±10%, 50/60Hz, single phase
Traveling speed	>28000mm/min
Engraving speed	>15000mm/min
Machine accuracy	0.03mm
Control system	DSP offline controller( RichAuto)
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE

Application
Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
