Car Elevator System

Product Description

Introduction

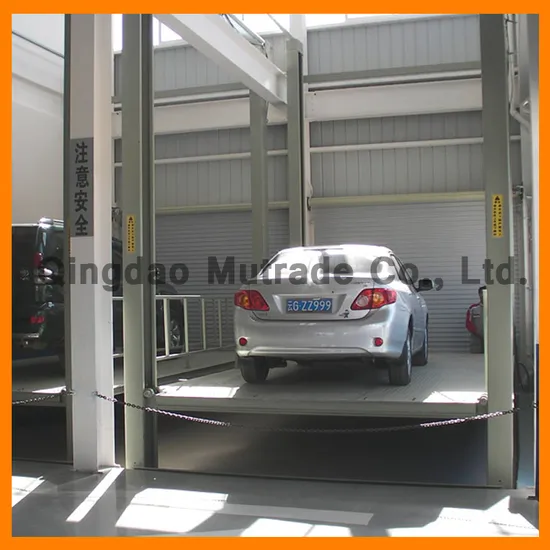

FP-VRC is a simple elevator moving vehicle or goods from one floor to another floor. It is the more cost-effective way to replace conventional elevator and also with many safety design. It is a custom equipment, which could be customized according to customers' different requirements from lifting height, load capacity to external size. It is popularly used in parking lot, car dealership, facotory workshop, etc.
Feature
1. Hydraulic cylinder + steel chains drive system
2. No pit or with pit available
3. Automatic shut-off if operator releases the button
4. Double chain design for higher safety
5. High density chains with longer service lift
6. Hydraulic overloading protection available
7. High precision and stable hydraulic drive system
8. Simple installation work
Spec Sheet

Load Capacity	3000-5000kg
Max Lifting Height	13000mm
Max Total Width	3800mm
Max Total Length	6500mm
Speed	4m/min
Custom Colors	Available
Certification	CE/ISO

Packing & Shipment
About Us
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking solution providers in China. We are committed to provide the most suitable and cost effective parking solutions to our customers all over the world.
Hydro-Park is a subsidiary company and sub-brand built by Mutrade for high-end mechanical parking equipment. We develop, design and manufacture mechanical parking equipment with our own advanced technology and keep consistent high quality.
