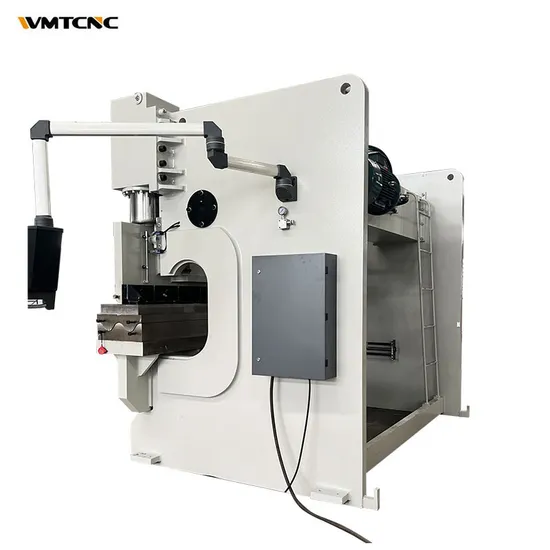

WMTCNC hydraulic press brake WC67Y-400X4000 press brake bending machine

WMTCNC hydraulic press brake WC67Y-400X4000 press brake bending machine

US$35,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WC67Y-400X4000
Warranty
1 Year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Nominal Pressure
4000 kN
Length of working table
4000 mm
Throat Dephts
400 mm
Motor power
22 kw
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Trademark
WMTCNC or Customized Logo
Origin
Chizhou, Anhui, China
HS Code
8462399000
Production Capacity
80 Sets/Month

Product Description

Product Description
WMTCNC hydraulic press brake WC67Y-400X4000 press brake bending machine main features:
1. Total steel-welded structure and stress elimination by vibration, High mechanical strength and good rigidity.
2.Hydraulic top-drive, stepless pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools reliability.
3.Mechanical stop and steel torsion bar to maintain synchronization and high precision.
4. The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters.
5. Deflection compensation device is provided for the upper die (The lower die is option for pressure 250T above).
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
Model Nominal Pressure Length of working table Distance between uprights Throat Dephts Stroke Open height Motor power
WC67Y/K-100/2500 1000 kN 2500 mm 2100 mm 320 mm 120 mm 380 mm 7.5 kw
WC67Y/K-100/3200 1000 kN 3200 mm 2450 mm 320 mm 120 mm 380 mm 7.5 kw
WC67Y/K-100/4000 1000 kN 4000 mm 3090 mm 320 mm 120 mm 380 mm 7.5 kw
WC67Y/K-125/2500 1250 kN 2500 mm 2100 mm 320 mm 120 mm 380 mm 7.5 kw
WC67Y/K-125/3200 1250 kN 3200 mm 2450 mm 320 mm 120 mm 380 mm 7.5 kw
WC67Y/K-125/4000 1250 kN 4000 mm 3090 mm 320 mm 120 mm 380 mm 7.5 kw
WC67Y/K-160/3200 1600 kN 3200 mm 2450 mm 320 mm 180 mm 440 mm 11 kw
WC67Y/K-160/4000 1600 kN 4000 mm 3090 mm 320 mm 180 mm 440 mm 11 kw
WC67Y/K-200/3200 2000 kN 3200 mm 2450 mm 350 mm 200 mm 465 mm 15 kw
WC67Y/K-200/4000 2000 kN 4000 mm 3090 mm 350 mm 200 mm 465 mm 15 kw
WC67Y/K-200/6000 2000 kN 6000 mm 4800 mm 350 mm 200 mm 465 mm 15 kw
WC67Y/K-250/3200 2500 kN 3200 mm 2450 mm 400 mm 250 mm 500 mm 18.5 kw
WC67Y/K-250/4000 2500 kN 4000 mm 3090 mm 400 mm 250 mm 500 mm 18.5 kw
WC67Y/K-250/6000 2500 kN 6000 mm 4800 mm 400 mm 250 mm 500 mm 18.5 kw
WC67Y/K-300/3200 3000 kN 3200 mm 2530 mm 400 mm 250 mm 500 mm 22 kw
WC67Y/K-300/4000 3000 kN 4000 mm 3090 mm 400 mm 250 mm 535 mm 22 kw
WC67Y/K-300/6000 3000 kN 6000 mm 4800 mm 400 mm 250 mm 535 mm 22 kw
WC67Y/K-400/4000 4000 kN 4000 mm 3090 mm 400 mm 320 mm 600 mm 22 kw
WC67Y/K-400/6000 4000 kN 6000 mm 4800 mm 400 mm 300 mm 600 mm 37 kw
WC67Y/K-500/4000 5000 kN 4000 mm 3100 mm 400 mm 300 mm 600 mm 45 kw
WC67Y/K-500/6000 5000 kN 6000 mm 4800 mm 400 mm 300 mm 600 mm 45 kw
WC67Y/K-600/4000 6000 kN 4000 mm 6200 mm 400 mm 300 mm 600 mm 45 kw
WC67Y/K-600/6000 6000 kN 6000 mm 4800 mm 400 mm 300 mm 600 mm 45 kw
Detailed Images
Company Profile
FAQ Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
