WPC PVC Panel Machine Clading Roofing Wall Panel PVC Ceiling Panel Hollow Decoration Panel Profile Extrusion Making Extruder Machine

Product Description

WPC PVC Panel Machine Clading Roofing Wall Panel PVC Ceiling Panel Hollow Decoration Panel Profile Extrusion Making Extruder Machine

Are you looking for a reliable supplier?
Are you curious the production process of PVC wall panel?
Do you want to what is raw material and how to mix additives in a correct ratio?
If you, please follow us, We have all details you need



----Machine Introduction----

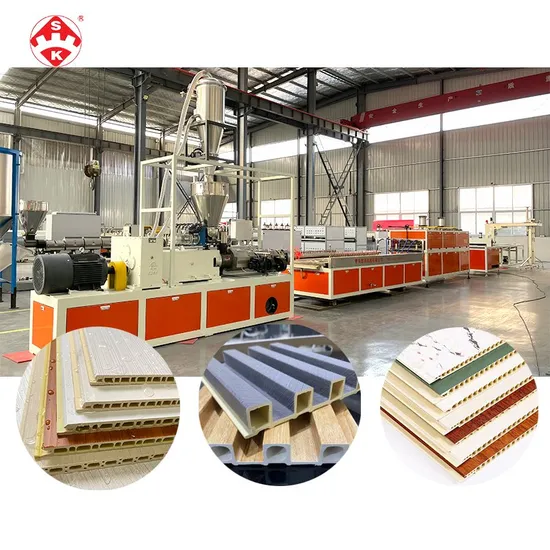

Extrusion Line is used to produce PVC/WPC wall panel with different size, such as 300mm, 400mm, 500mm, 600mm wide, etc.
Changeing some of parts, this line can also produce wpc profile.
According to the didferent formula, should mix the PVC powder with additives in a ratio. After mixing, put the raw material into the extruder by screw feeder. By heating and mixing in extruder, the raw material will change to fluid and extruded into mould. Out of mould, wall panel will be shaped and cooling by platform. Through the tractor, cutting machine, finial end on collect platform for packing.
----Equipment List----
Equipment list of PVC WPC Decoration Wall Panel Extrusion Production Line

No	Item	Quantity
1	screw feeder	1 unit
2	SJSZ65x132 twin screw extruder	1unit
3	Extrusion Mould	1set
4	Calibration paltfrom	1 unit
5	Haul-off Machine	1 unit
6	Cutting machine	1 unit
7	Collect platform	1 unit

Auxiliary machine for option:
1. SWP 400 Crusher
2. 300/600 Mixer
3. SMP400 Pulverizer
4. 10P chiller.

SJSZ65x132 twin screw Extruder
World famous brand electrical component: Siemens, Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface..
Cabliration Platform
Include full set of vacuum and water pump• Width: 240mm• Length: 6000mm• Independent operation panel for easy operation
Include full set of vacuum and water pump• Width: 240mm• Length: 6000mm• Independent operation panel for easy operation
Upper/lower caterpillar driven separately and speed control by inverter• Fast change type pads for easy operation• Install plate is adopts aluminum material
Crusher Miller
PVC wall panel making machine is composed of conical twin-screw extruder, vacuum shaping table, haul-off machine, cutter, turning-up flame.
According to the different profile's section and moulds, you can choose different specifications of extruders to fit.
The vacuum shaping table adopts special eddy current system to enhance cooling effect.
The unique control skills of horizontal tilt and three dimension regulations embody perfectly for convenient operation. According to the different moulds and shaping tables, you can select corresponding sizing tables to meet the requirement of high output.The tractor uses the unique fluctuation technology and back pressure control with caterpillars around it.
The cutter's move speed keeps with the tractor. It can automatically cut for fixed length and it also equipped with powder recycle device.The line can be used to produce PVC door and window profile,door pocket,pvc cable channel, pvc wiring duct, skirting board, louver blade etc.

Why Choose Us?
Strong Strenth
Founded in 2002.
20000 square meters factory
Over 50 workers

Rich Experience
Over 500 lines exported
Sell to over 20 countries
Cover all of extrusion products

Professional Support
Machine & Specification Making
Details infos classfication
Picture & videos sharing
Formula & operation support
Good After Service
Full set of drawings
Full set of operation manual
Free running test
Free online technical support
