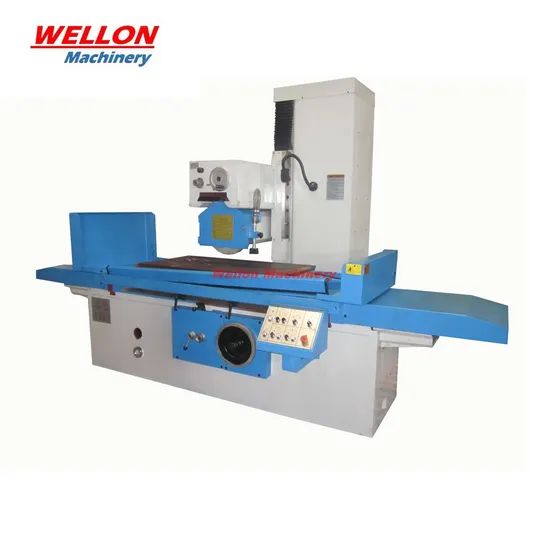

High Precision Surface Grinding Machine (M7150A) Surface Grinder Machine

Product Description

Performence Features:
This series of surface grinder is most suitable for the grinding steel, casting and non-ferrous parts of machine manufacturing industry.
The accuracy of the machine has reached the National Standard for horizontal spindle & rectangular worktable surface grinder.
The longitudinal movement of the worktable is driven by vane pump, which makes the movement smooth and low noise.
The bearings of the wheel head spindle adopt bimetal shell bearing, which can afford heavy impact and make the machine able to carry out heavy load grinding.
The cross movement of the wheel head can be driven by hand or by hydraulic oil automatically. It is easy to operate. The vertical feed of the wheel head is driven by hand. It is also assembled with rapid elevating motor, which can reduce the intention of work labor as well as enhance the work efficiency.
The machine moves smoothly and has reliable performance, low noise and stable accuracy. It is easy to operate and deeply welcomed by the customers.
Technical parameter:

Model		Unit	M7150A	M7150Ax1600	M7150Ax2200
Worktable size		mm	500x1000	500x1600	500x2200
Max machining dimension		mm	500x1000	500x1600	500x2200
Distance from spindle center to table		mm	700
Longitudinal moving speed of worktable		m/min	3-27
T-slot number		mm	3x22
Wheel head Cross moving	Continuous feed speed	m/min	0.5-4.5
	Intermittent feed speed	mm/t	3-30
	Hand wheel feed	mm/gra	0.01
Vertical Moving of wheel head	Rapid speed	mm/min	400
	Hand wheel feed	mm/.gra	0.005
Wheel Head motor	Power	kw	7.5
	Rotation speed	Rpm	1440
Total power		kw	12.25	13.75	15.75
Max loading capacity of worktable		kg	700	1240	1410
Chuck size		mm	500x1000x1	500x800x2	500x1000x2
Wheel size		mm	400x40x203
Package dimension		cm	311x190x242	514x190x242	674x190x242
Machine Weight		t	320x228x252	520x228x252	680x228x252
Model		Unit	5.78	7.32	8.78

Standard Accessories:
Wheel Flange ,Balancing Arbor ,Wheel Exactor ,Coolant Tank ,Working Lamp
Tool Box and Tools ,Wheel dresser Stand not include diamond pen
Standard Grinding Wheel, Leveling Wedge and Bolt
Built in Electro Magnetic Chuck Controller
Optional Accessories:
Standard Electro Magnetic Chuck
Wheel Flange
Balance Stand
Coolant Tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser
