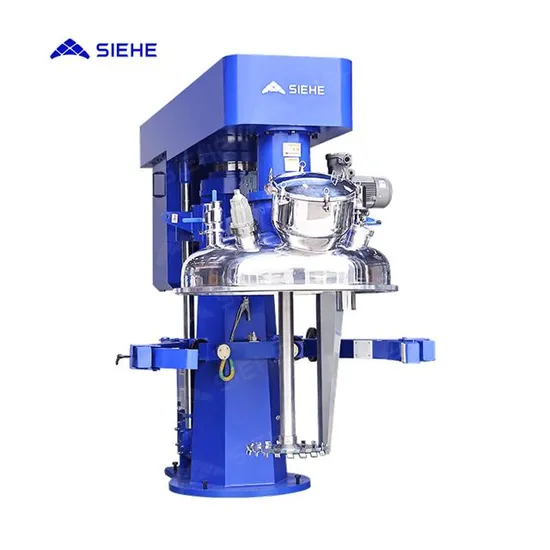

Vacuum Hydraulic Lifting High Speed Disperser with Scraper

Product Description

Product Description
Scraper Type High Speed Disperser is a kind of product with function of dispersing, scraping, and vacuumizing. During dispersing process, scraper can rotate along the tank wall and generates a radial mixing flow. In addition, the PTEF scraper can scrape the materials on the tank off efficiently. It is good for the materials with mid-and-high viscosity and thixotropy property. The finished products can be discharged completely and the tank are easy to clean. With vacuum closed design, together with vacuum pump or the pump group. The vacuum degree can go up to -0.098MPa (20mbar), it is apply to the dispersing and mixing materials under special working condition like vacuum degassing, vacuum materials feeding, inert gases protection etc.

Production Capacity	400-10000L
Application Industry	Prefect meet the requirement of dispersing and mixing from biology, food, paint, ink, adhesive,pigment,pesticide etc.
Application Materials	Good for all kinds of slurries with viscosity less than 100,000cps, and solid content less than 80%, such as emulsion paint, industrial paint, water-based ink, pesticide suspension, adhesive and etc anaerobic adhesive and etc.

LAB USE SCRAPER DISPERSER
5L working volume Electrical lifting structureWith vacuum systemIntegrated lab use machine Production Use Scraper Disperser
PTFE materials scraper ;
Vacuum system optional ;
ATEX ex-proof available ;
PLC +HMI control system. Customized High Standard Scraper Disperser
Mixing shaft lifting up& down during mixing ;
With Weighing model for raw materials dosing ;
Integrated vacuum system ;
Strengthed hydraulic column.
Technical Details
The advantages of this machine, is under the closed/vacuum situation, the dispersing agitator can be lifted up and down to mix materials, with higher mixing efficiency.
---Suitable for low to middle viscosity slurry
---With PTFE materials scraper, and the high speed disperser shaft;
---Vacuum type, ATEX ex-proof type, heating/cooling device all can be customized.Projects Display
Company Profile
SIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining CenterCustomer Photos
