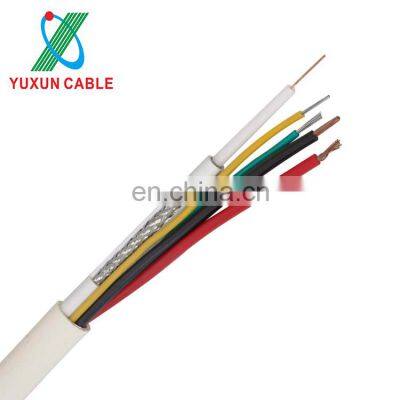

Customized HD-SDI RG59 With RS485 Cable For CCTV System

Product Description

Product Description
Customized HD-SDI RG59 With RS485 Cable For CCTV SystemProduct Description

(Mini) RG59 + 2 power
Inner conductor	(0.58mm / 0.81mm) BC/CCS
Insulation	(2.0mm / 3.7mm) Solid PE / Foam PE
Shield	Aluminum foil
Braid	Aluminum wire/ Copper clad Aluminum wire/ bare copper wire/ Tinned copper wire / the diameter of wire from 0.12mm / Coverage : 40%~96%
Jacket	(3.5mm / 5.9mm) PVC
Color	Black /White or as per customer's requirement
Power cable (have 2.5mm²/ 0.5mm²/ 0.75mm²/ 1.0mm²),18 AWG
Inner conductor	(14*0.15mm/ 16*0.2mm/ 24*0.2mm) Stranded Bare Copper
Insulation	(1.25mm/ 1.8mm/ 2.0mm) PVC
Over jacket	(3.5*3.5mm / 6.0*3.5mm) PVC
Length	100m/ 200m/ coil/ cardboard reel/ wooden reel/ or as per customer's requirement.

Send inquiry>>>
Click here to contact us for more information and free sample
Company Information
Production Line
Our client
Packaging & Shipping
Certifications
FAQ
Q1:Are you a trading company or manufacture?
A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last.
Q2:What is your delivery time?
A2:Normally,our delivery time is 15-20days after get your deposit. .
Q3:What is your MOQ?
A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually.

Q4:What is your general payment term?
A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery.
Q5: Can you produce the specfic cable strictly according to clients' requirement?
A5: Yes, we have professional technical team, so we can do ODM for customers.
Q6: Where you are located?
A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou.
If you intersting in our cables, pls send the enquiry now!!!
Free sample will be deliveried to your address soon!!
