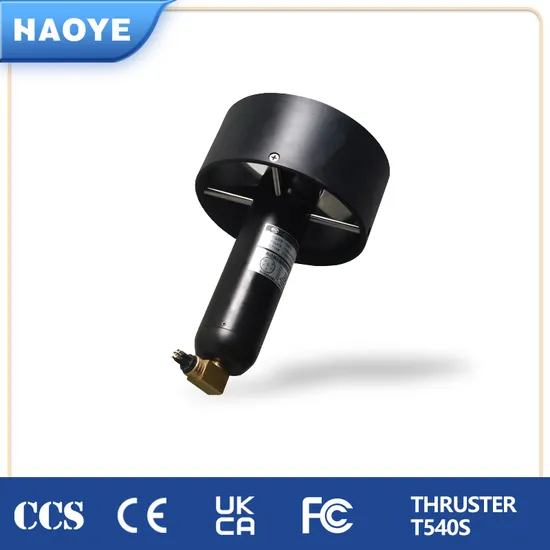

1kw Electric Underwater Thruster for Rov Auv Uuv

Product Description

Underwater thrusterProduct Parameters

Model	T540S
Rated power	1kw
Rated voltage	48/60/72/100/120/160/200/250/300VDC
Max RPM	1900r/min
Forward Thrust	20kg
Reverse thrust	20kg
Propeller handing	CW/CCW
Depth rating	0-850/1500/300/6000m, full ocean depth
Signal power	supply voltage is 12VDC(±5%),≤250mA
Control mode	analog voltage/CAN BUS/RS485/PPM
feedback mode	Pulse/analog voltage/CAN BUS/RS485/PPM
Electronics	built-in/external

Detailed Photos
Our Advantages
1. We have installed power isolation, overcurrent protection and overheat protection for the built-in drivers. A ramp linear processing is performed on the control signal. These two upgrades allow the thruster to switch directions frequently and quickly. And voltage fluctuations +-15% will not cause any harm to the thruster. Makes the thruster has long-life.
2. We use alloy bearings with water lubricating effect, which are very advantageous in terms of wear resistance and quality.
3. Our thruster adopt magnetically coupled drive technology, is the one that magnet array fitted inside the propeller hub is driven by the one attached inside the housing of the thruster, so as to realize non-contact and leak-free transmission of torque. magnetically coupling structure will produce ratchet effect in case of overload, to prevent the damages caused by objects jammed into the propeller.
4. Not only we have capacity from R&D to produce, but also we have professional test pool, which simulate real marine environment, adding sand and shells, we test them before each model is molded, one-time charging for thrusters, uninterruptible power supply, running at full power for more than 1,000 hours. The total time of fatigue test and other tests reaches 3000 hours.
5. We have a professional five-axis machining center, propeller integrated molding. It is SS material.
Products Case
ROV
Our subsea thrusters had been widely use worldwide, including different kinds of ROVs, For marine Scientific research, seafloor Minning, Repair and monitor for underwaters, and can go full depth of the sea.
U-boat Worx Submersible
U-Boat Worx is a Dutch submersible manufacturer that began as a dream by founder Bert Houtman in the 1980s. The company is now one of the industry leaders in submarine design.Haoye technology provide thrusters for almost all types of submarines, include Main thruster, vertical thruster.
AUV
We provide thrusters to all kinds of AUVs, include main thruster and auxiliary thrusters, and can go any depth.
One project uses our propulsion system based on the principle of lift deep-sea high-speed submersible, with high speed, large load, strong environmental adaptability and other characteristics, which has a broad application prospect in the future of marine emergency search and rescue and scientific investigation.
Winter Olympics torchbearer
The 2022 Beijing Winter Olympics showed the first underwater torch relay between robots in Olympic history, and the core power component of the amphibious robot that accomplished this "fire and water" task was our underwater propellers. Our propellers provide stable propulsion and control, so that the positioning accuracy of the torch end can be maintained within 1cm under the complex flow field environment in the field.
Packaging & Shipping
Company ProfileHaoye Technology Co., Ltd. was founded in 2013. It is a private science and technology company mainly engaged in R&D, producing and selling underwater thrusters, underwater rotary actuators, special motors etc. It also provides users with complete electronic control solutions such as motor drive and precise design and processing services for mechanical components such as propellers, we have own R&D department to design project, professional produce equipment and test pool, five-axis machining center, every detail to ensure the stability and long life of products. Enterprise vision is to be a leader in the core supporting field of high-end intelligent equipment.
After Sales ServiceOne year warranty time, during the warranty period, our company provides free repair or replacement services for non-human damage; when the warranty period expires, only the maintenance cost and freight will be charged;
Life-long technical support;
7/12 hours service.
FAQQ: Are you a factory?
A: Yes, we hava capacity of R&D, produce, test etc..
Q: Do you provide custom service?
A: Yes, our thrusters are serialized, if there isn't model that meet your requirement, we also can customize for you.
Q: Can we order one set as sample?
A: Of course. MOQ is one set.
Q: If there is problem when we use the goods, how can we do?
A: First of all, please contact us in time, send videos and pictures for us, so that we can judge the problem and find the reason. We will guide you to debug and repair by video conference or email. If you can't solve it, please send the product to us in time, and we will repair immediately and send it back to you as soon as possible. For other content, please refer to after-sales service.
Q: Do you have overseas agent?
A: Yes, now we have agent in Singapore, Canada, Australia. We'd like to cooperate with powerful and intentional customers.
