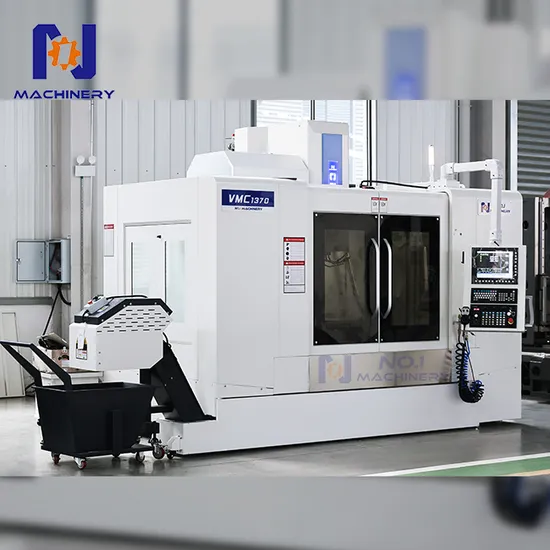

Best Selling Vmc1370 3axis CNC Milling Machine Vertical Machining Center CNC Fanuc

Product Description

Product Description
Application: CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening. Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.


Main Feature: 1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7 Fully automatic electronic lubrication system for uniform oil supply and good stability.
Specifications

Item Model	Unit	VMC1370
Size of worktable	mm	1400*700
T-shaped groove for table	mm	5-22*122
Maximum load on table	kg	1000
X/Y/Z rail width	mm	45/45/55
X/Y/Z ball screw specification	mm	5010/5010/5010
X/Y/Z Axis stroke	mm	1300*700*700
X/Y/Z motor torque	NM	18/28/20
Spindle face to table position	mm	140-840
Distance from Spindle Center to column	mm	785
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	24/24/24
Spindle end taper/diameter	mm	BT40/50-150
Spindle motor power	kw	15
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Disc
The capacity of knife storage	tools	24
Maximum tool diameter/weight	mm/kg	78-120/7.8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	7000/7500
External dimensions	mm	3700*2750*2950

Details Display


Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.
