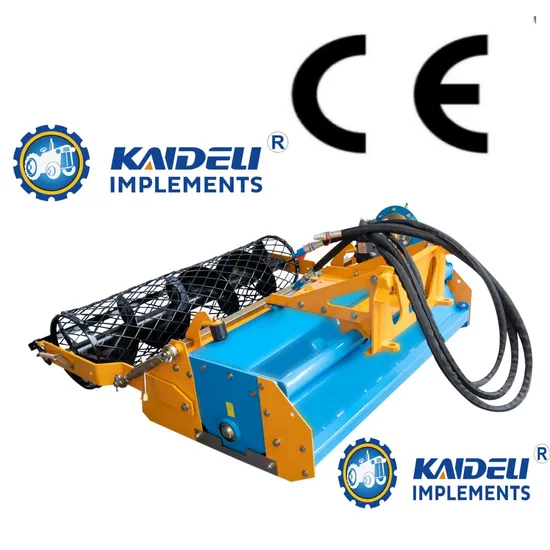

Rotary Tiller with Stone Burier 120mm Max Tilling Depth
| Negotiable | 5 Pieces (MOQ) |
Basic Info.
Model NO.
SB85H-165H
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Soil Preparation Machinery, Continuous Running Op
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Customize
Warranty
1 Year
Working Width
800-1600mm
Max Tilling Depth
120mm
Pump Flow
35-60L/Min
Pressure
20MPa
Transmission Type
Hydraulic + Chain
Type of Linkage
Front Quick Change Rack
Transport Package
Steel Crate
Specification
CE Standard
Trademark
Kaideli
Origin
Changzhou, China
Production Capacity
100 Sets Per Month
Product Description
Product DescriptionUses: 1. The SBH series stone burier machine is driven by a hydraulic motor to drive the transmission shaft to drive the driving sprocket to rotate, and then the driven sprocket is driven by the chain drive to make the cutter shaft rotate tillage.
2. The cutter shaft works in the opposite direction.
3. When it is inserted into the ground, the tail roller is covered with soil and buried.
4. In case of large stones, it needs to be slowly pushed away by the flat soil teeth, and then picked out separately.
5. This series of stone burier machines can be used in various occasions, such as fields, fruit trees, sports fields, parks, etc.
Product Parameters
| MODEL | SB85H | SB105H | SB125H | SB145H | SB165H |
| LxWxH(mm) | 1100x1400x1000 | 1300x1400x1000 | 1500x1400x1000 | 1700x1400x1000 | 1900x1400x1000 |
| Working Width(mm) | 800 | 1000 | 1200 | 1400 | 1600 |
| Maximum Tilling Depth(mm) | 120 | ||||
| NO. of Blade | 8+8 | 10+10 | 12+12 | 14+14 | 16+16 |
| Pump Flow L/min | 35-45 | 35-45 | 35-45 | 35-45 | 45-60 |
| Pressure MPa | 20 | ||||
| Transmission Type | Hydraulic + Chain | ||||
| Type of Linkage | Front Quick Change Rack | ||||
| Weight(kg) | 245 | 260 | 275 | 290 | 305 |
Detailed Photos
