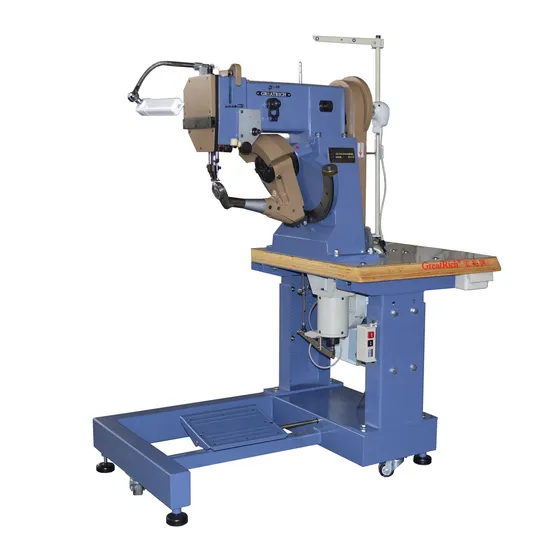

Gr-268e Industrial Children Shoe Side and Upper Sewing Machine

Product Description

GR-268Echildren shoe sewing machine

Technical parameter:
Sewing speed	Stepless speed regulating
Stitch	Double lock
Sewing thread	Compound thread
Stitch length	3-10mm
Needle spacing	1.5-6mm
Sewing needle	CP*5(23#25#)
Motor	750W/ 220V one-phase 50-60hz 750W/ 380V three-phase 50-60hz
Net weight	230Kg
Domestic packing gross weight	about:300Kg
Domestic packing parameter	135*73*149(L*W*H) cm
Exportation packing gross weight	320Kg
Exportation packing parameter	136*78*156(L*W*H) cm
Characteristics:
1. For sew baby shoe.
2. All parts were manufactured by HAAS CNC machines, high precision machining parts.
3. Using electronic speed motor speed can be flexible, stop the needle position by computer control.

1.Excellent structure design and operation is simple and efficient.
2.The speed can be adjusted by means of an electronic governor motor.
3.All parts were manufactured by HAAS CNC machines, high precision machining parts.

CHANGSHU GREATRICH MACHINERY CO.,LTD

Changshu Greatrich Machinery Co.,Ltd. was established in 1987, it has the history of more than 30 years till now. We are supplier who developing, manufacturing , saling , and providing special industrial sewing facility.
Our main products are different kinds of industrial sewing machines, especially shoe sewing machines such as double thread side seam series like GR-168/2, double thread seated inseam sewing machine like GR-268A; bottom seam sewing series like GR-998, single thread inseam sewing machine like GR-991/2; moccasin sewing series like GR-81; moccasin sewing machine for GR-747; Goodyear series like welt sewing machine GR-615,double needle welt sewing machine GR-619, high-speed outseam sewing machine GR-368/2. Ramie sole shoe series sewing machine For example:GR-188 pattern insole sewing machine,GR-350 pattern outsole sewing machine. We also develop other sewing equipments for special solid forming.we constantly develop new products all the time.
Our factory is located in Meili Town ,Changshu City,jiangshu Province.Our team make continuous efforts for the products ,it has gradually become a flag in sewing industry .GreatRich engageds in providing better products and better service of special sewing equipment for customer. With you could create a brighter future with us!



Shoe samples made by GR-268E children shoe machine
