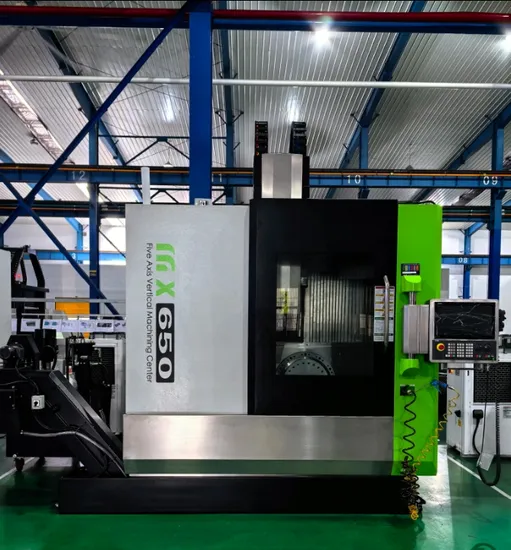

High Speed 5 Axis Vertical Machine Center Mx650 Fully Automatic CNC Vertical Machining Center
Basic Info.
Model NO.
MX650
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
5 Axis Machine Center
5 Axis Vertical Machine Center
Machine Center
Machining Center
Vertical Machining Center
Vmc640 High Precision CNC Milling Machine Vertical
Main Motor Power Kw
5.5kw
Spindle Max. Rotating Speed
Servo Spindle 8000rpm
Z Motor Torque
15n.M
X Motor Torque
6n.M
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 4520*3960*3340
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
MX650 High Speed 5 axis vertical machine center for aluminum cast forge parts cnc milling machiningMX650 5 Axis cnc vertical metal milling machining center price
1. 5-axis linkage, full closed-loop control, suitable for complex surface machining of precision molds.
2. With forward cantilever and longitudinal cradle layout, the straight spindle is separated from the processing area to obtain the best dynamic performance and convenient operating space.
3. B and C axis are driven by precision worm gear transmission, and Heidenhain circular grating is used to improve accuracy retention.
4. The worktable is equipped with tailstock unit, which can keep high precision under full load.
5. The machine has high torque and good quick response characteristics, which is suitable for automobile, mould, aerospace, industry, hardware and other mechanical processing fields.
Product Parameters
| Model | Unit | MX650 |
| Worktable | | |
| Table size | mm | 600 |
| Max. load on worktable | kg | 350 |
| T-slot | mm | 5-14*100 |
| Travel | ||
| X-axis | mm | 650 |
| Y-axis | mm | 550 |
| | | |
| Z-axis | mm | 500 |
| B-axis | | -40°/+110° |
| C-axis | | 360° |
| Spindle nose to worktable center | mm | 140-640 |
| Spindle | ||
| Spindle taper | | BT40 |
| Rotating spindle speed | rpm | 15000 |
| Spindle motor | kw | 11 |
| Feed speed | ||
| Fast feed speed | m/min | 36 |
| Maximum rotation speed of B-xis | rpm | 25 |
| Maximum rotation speed of C-xis | rpm | 25 |
| Tool magazine | ||
| Capacity of tool magazine | | 40 |
| Max. tool weight | kg | 8 |
| Max. tool length | mm | 200 |
| Max. tool diameter | mm | 75 |
| Tool change time | sec | 2.5 |
| Precision | ||
| Positioning accuracy(X/Y/Z) | mm | 0.008 |
| Repeated Positioning accuracy(X/Y/Z) | mm | 0.005 |
| Positioning accuracy(B/C) | sec | 5 |
| Repeated Positioning accuracy(B/C) | sec | 2 |
| others | ||
| Air supply pressure | bar | 6-8 |
| Air pressure flux | L/min | 280 |
| Weight | T | 10.5 |
| Floor area (length*width*height) | mm | 4520*3960*3340 |
