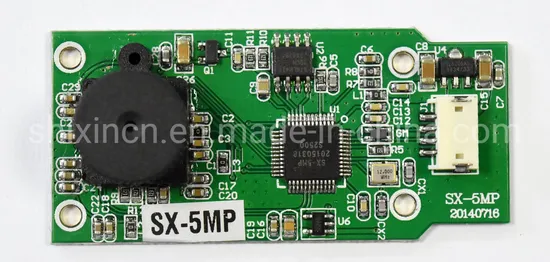

HD 5.0megapixels 2592*1944 1/4 CMOS M7 USB Module Camera (SX-6500A)
| US$15.00-20.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SX-6500A
Optical Zoom
Without Optical Zoom
Spectral Rrange
Infrared Camera
Image Sensor
HD CMOS
WiFi
Not Support WiFi
Product Positioning
Professional
Product Name
5.0megapixels USB Camera for ATM
Model Number
Sx-6500
Sensor
5.0 Megapixels 1/4 CMOS
Resolution
2592h*1944
Size
58*27mm
Pixel Size
1.4um *1.4um
Sensitivity
0.49V/Lux-Sec(550nm)
Max Frame Rate
12fps
Lens
M7
Transport Package
Bubble Bag and Standard Exprot Carton
Specification
ISO 9000; CE, FCC, RoHS
Trademark
SHIXIN OR OEM
Origin
China
HS Code
8529904100
Production Capacity
1000PCS/Month
Product Description
HD 5.0Megapixels 2592*1944 1/4 CMOS M7 USB Module Camera (SX-6500A)USB 5.0 Megapixel Camera
1/4" CMOS with Aptina chip sensor
5.0 megapixel resolution
Resolution: 2592H*1944V
Frame rate: @5fps (2592*1944)
@30fps (640*480)
Pixel size 2.2um X 2.2um
Color balance: Auto White Balance/Auto Exposure/Auto Gain
Dimension: 58mm*27mm
Interface: USB2.0(no need external power)
Software: Capture software, free driver
Application: ATM, Portable scanner, Industry camera, Medical equipment
| Product Name | 1/4 CMOS M7 USB Module Camera |
| Model Number | SX-6500A |
| Image Sensor | 5.0 Megapixels 1/4 CMOS |
| Lens | M7 |
| Resolution | 2592*1944 |
| Max Frame rate | 30fps (640*480) |
| 2fps (2592*1944) |
If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.
