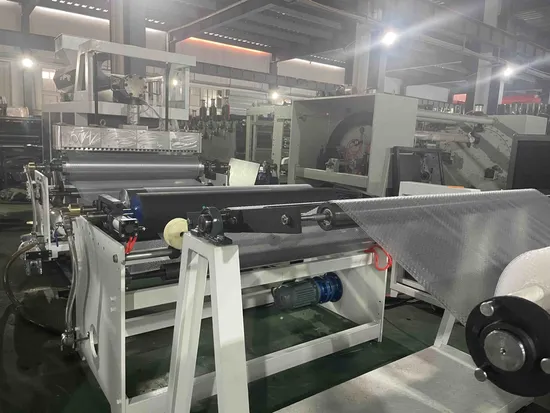

Hlpe-1200 Size 2 Layers LDPE Air Bubble Film Wrap Making Machine Extruder

Product Description

Company Profile

Rui'an Hualiang Machinery Co., Ltd. As the first manufacturer of bubble film machines in Wenzhou, it is currently dedicated to the research and development and manufacture plastic related machine, such as pe air bubble film making machine,pe stretch film machine ,plastic bags production line. we implements a rigorous and excellence-seeking attitude, continuously conducts product research and development, and continuously improves the performance of bubble film machines. Currently, the company's products are not only popular in the domestic market but also exported overseas. we now focuses on improving product quality, using strength to create a good product brand, and striving to provide users with the highest cost-effective bubble film machines. Detailed Photos

Electric brand

Product Parameters

Model	HLPE-1200
Screw Diamter	Φ80
L/D	34:1
Film structure	2layers
Forming Roller	Φ320mm; Bubble:Φ10*2.8 or Customize
Finished Film Width	500-1200mm
Forming Thickness	30-200gsm
Usable Material	LDPE,LLDPE
Max Working Speed:	30 m/min
Max Extrusion Capaciy:	110kg/h
Motor Power	30kw
Total Power	96kw
Winding Diameter	≤φ1400 mm
Weight	8000kgs
Overal Dimension	8000×4000×3500 mm
Power Supply	380/3/4/50(Volt/Ph/Line/Hz)

final product usage
Polyethylene air-bubble film(also called polyethylene bubble film).which is divided into two kind : ordinary polyethylene air-bubble film and composite polyethylene air-bubble film.This machine can produce Two layers(single side).
The air bubble film has many kinds of usage, like that the film surface laminates kraft paper as express packing bag and laminates the aluminized polyester film as the thermal insulation film.

Exhibition

Packaging & Shipping
FAQ

Q1: Are you trading company or manufacturer?
We are the best air bubble film making machine factory at wenzhou,ruian city,zhejiang province for more than 36 years experiences,
machines have been sold out all over the world,more than 20 countries.
Q2:How do you guarantee machine quality?
Quality is our first priority, all our workers are well trained and many of them are have more than 10years experience .
in the bubble film factory,and we strictly follow the production procedures, all machine will be having a throughout testing before the shipping.
Q3:Why choose your company as supplier?
HLGP have more than 10years experiences in making high standard and high quality bubble film making machines.Stronger structure and high speed machine max speed 40merter per minutes and special machine max. Many our customer bought our first machine, then second on, then third one.... we grew up with each other and
that's the best partnership.
Q4: How about installation, training and after service
Rich experienced engineers available to provide oversea service at your factory
Installing, testing and training service ,Lifelong technical support ,1 year warranty.
