Semiautomatic Small Bottles Water Blow/Blowing Moulding/Molding Machine/Machinery/Injection Molding Machine/Plastic Machinery/Plastic Machine with CE

Product Description

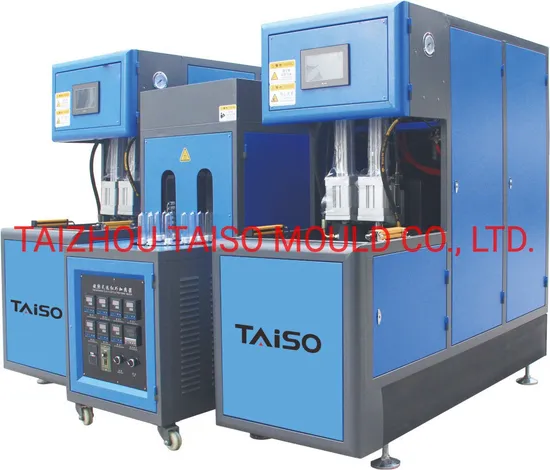

TS-3L-II Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. TS-3L-11is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Features
1. Produce bottle from 0.1L to 2L(2 cavity)
2. Output capacity up to 900 for 0.6L using two-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.

Model	TS-3L-II (2 Blower & 1 Heater)
Max. Volume	1.8L
Output	1200-1500BPH
Number of Cavities	2 Cavites
Neck diameter	18-120mm
Max. diameter	130mm
Max. Bottle height	340mm
Mold thickness	70-230mm
Clamping stroke	190mm
Rated power	20kw
Power consumption	10-13kw
Blower size	1600*620*1550mm*2
Heater size	2160*600*1350mm
Weight	1400kgs
