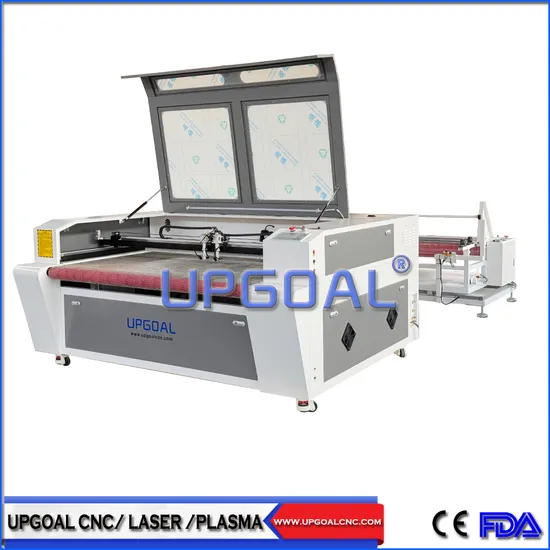

1600*1000mm Dual Head Automatic Feeding Fabric CO2 Laser Cutting Machine Laser Cutter

Product Description

1600*1000mm Dual Head Automatic Feeding Fabric Co2 Laser Cutting Machine
Features
Auto material-feeding platform
Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.
Auot edge cutting without rough edge, burr.
With Oneline control system, Work can be loaded from the Cloud.
Automatic Deviation Correcting Device, solved the defect of long-term cutting cloth offset.
Laser Head with infrared positioning
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Two-way moval dual Co2 laser head, automatic adjusting distance, two head working together, much improving working efficiency.
Laser Tube
Adopted high quality 2 pcs Reci-130W Co2 laser tube, long working time time and stable
Working Table
SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality


Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Driving system
Adopted China Yako three phases stepper motor driver, high precision, fast speed and more stable.
Operation System
Advanced USB port RuiDa RDC6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency.
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-6000, ensuring the laser tube long time continuous working.
Blow-off system: 550W air blower and 195W air pump ( HAILEA)
Technical Parameters

Effective working area of each head	1500*1000mm
Laser Type	Co2 sealed-off laser tube
Laser tube power of each tube	130W, Reci brand, W6 model
Laser head	Two-way movable two laser head
Working table	SUS304 stainless steel strip auto feeding working table
Driver mode	3 phases stepper motor and driver, Yako brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	3M belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa RDC 6445S
Control software	RDWorks V8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-6000
Water protection system	Yes
Blow-off system	air blower and air pump
Biggest scanning accuracy	2500DPI
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Voltage	AC 220V /110V, 50/60Hz, single phase
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Certificate	CE/FDA

Reference Working Videos
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Accessories & packing
For more information, just feel free to contact us!
