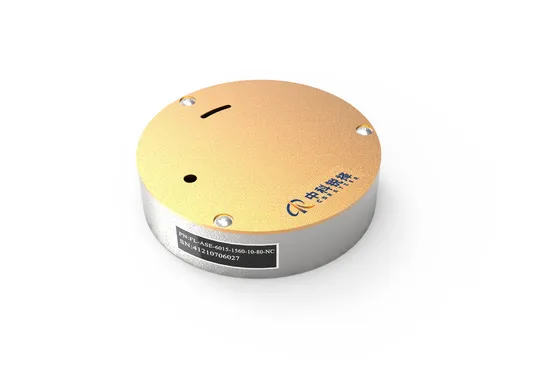

Csrayzer Fog Ase Light Source-Fiber Optic Gyroscope Component

Product Description

Introduction
CSRayzer's Amplified Spontaneous Emission (ASE) Light Source, has two kinds of Circular and Rectangular, according to customer's structural requirements of different designed FOG. The ASE Light Source for Fiber Optic Gyroscope (I-FOG) is a light source module designed for high performance Fiber Optic Gyroscope. This kind of ASE Light Source adopts optimized optical path structure, spectral filtering and power control, which plays a vital role in improving the stability of scale factor and full temperature of FOG. In order to meet the requirements of different environmental conditions, the light source has been strictly checked in the range of -45 ºC~ 70 ºC, and the optical and circuit devices from devices to modules have been strictly screened. Integrative precision temperature control technology is adopted in the light source, which not only ensures the spectral stability of the light source, but also reduces the overall power consumption of the light so.
Specification

Parameters	Unit	Min	Max
Optical Operating Wavelength	nm	1531±20	1560±20
3 db bandwidth	nm	6.5	7.5
Output optical power	mW	3	30
Modulation depth	dB		0.05
Full temperature power stability	%	15	10
Wavelength stability (single temperature)	ppm	-3	5
Wavelength stability	ppm	10	100
Working Temperature	ºC	-45+70
Storage Temperature	ºC	-50 - +85
Relative humidity	%	5	- 90
Power consumption	W		- 3.5
The power supply	-	DC 5V
Electric connector	-	5V-GND
Fiber Type	-	SMF,80um
Package Dimension	mm	Φ120, Φ98, Φ70
