Pulping Agitator Impeller for Waste Paper Recycling Line
| US$2,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Agitator
Usage
Pulp Chest
Nominal Volume(m³)
20-500
Impeller Diameter (mm)
Φ1000
Rotating Speed of Impeller (r /min)
245
Certification
CE, ISO
Condition
New
After-sales Service
Replace for Free for Quality Issure
Material
Slurry Part SS304 and Outside Cast Iron
Volume
20-500
Function
Mix Pulp
Power
7.5-132
Diameter
600-2000
Consistency
Lower Than 6%
Transport Package
Wooden Case
Specification
JBT400-2000
Trademark
HUATAO
Origin
China
HS Code
84399900
Production Capacity
30-100 T/Day
Product Description
Pulping Agitator Impeller for Waste Paper Recycling Line
Product Description
Used for agitating and mixing the pulp.
The angle of the impeller is adjustable, no need to discharge the pulp from the chest if the agitator packing.
Product Parameters
| Type | HT-600 | HT-800 | HT-1000 | HT-1300 | HT-1500 | HT-2000 |
| Diameter of impeller: mm | Φ600 | Φ800 | Φ1000 | Φ1300 | Φ1500 | Φ2000 |
| Chest volume: m3 | 20-50 | 40-80 | 70-100 | 100-130 | 130-200 | 300-500 |
| Power: kw | 7.5-11 | 11-18.5 | 22-30 | 30-55 | 70-100 | 110-132 |

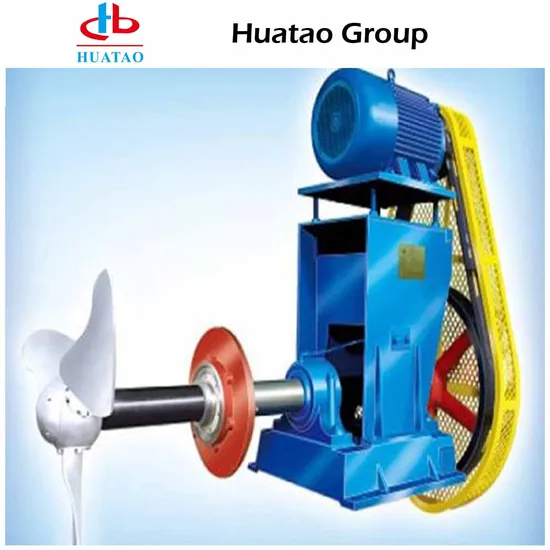

The Pulp Chest Agitator is composed of pulley, bracket, main shaft, base, sealing ring, packing chamber, shaft sleeve, gland, impeller, shaft cap, belt cover, bearing seat, bearing, V-belt, motor, etc.
Detailed Photos
Company Profile
Huatao Group have been a big and professional supplier of Pulp and Paper Machinery and Equipment in worldwide since 2008.
Always keep high quality and service is our key to succeed, because our company believes that only good quality and best service we can get more and more repeat orders from customers.
We have exported paper products such as Agitator, slurry pump, Consistency Transmitter, pressure screen, cleaner, refiner and so on to hundreds of paper mills around the word. Our Professional Team
