800mm/1000mm/1300mm Edge Grinding Polishing Deburring Machine for Laser Cutting Burrs Removal

Product Description

Stainless Steel Edge Grinding Polishing Deburring Machine For Laser Cutting Sheet Metal Burrs Removal
Stainless steel wire drawing and chamfering machines are mainly used for wire drawing and chamfering of stainless steel, copper, aluminum and other metal materials. Through wire drawing, the metal surface can present a delicate texture and improve the aesthetics; while chamfering can remove burrs and sharp angles on the metal edge, increasing the safety and assembly of the workpiece.
The stainless steel chamfering and deburring machine is an efficient, precise and stable processing equipment. It has a wide range of applications in the stainless steel processing industry and is characterized by high efficiency, stability and precision. Through the combined action of the sanding belt and the universal wheel roller brush, the stainless steel surface is dry-grinded to achieve the effect of removing burrs, polishing and chamfering.
Stainless steel wire drawing and chamfering machines are widely used in mold manufacturing, hardware machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery and other fields. In these fields, wire drawing and chamfering of metal materials are one of the common processing technologies, which are of great significance to improving product quality and aesthetics.
TECHNICAL PARAMETERS:

Minimum size of part	30x30mm
Function	Deburring , chamfering, polishing Optional: edge rounding
Column diameter	35mm
Bearing	NSK
Max width	800mm 1000mm 1300mm
Max thickness	80mm
transferred speed	1~10m/min
Electronic component	Chint
Motor power of conveyor belt	1.5KW
Motor power of the first sand frame	11kW
Motor power of the second sand frame	7.5kW
Noise	≤70dB
Conveyor belt	3020mmX1000mm
Machine size	2800*1800*2300mm
Weight	3600kg

CONFIGURATIONS:

Smart Control Panel
Simple and clear control buttons;
Digital display meter to control the lifting with higher precision.
Electrical Control Box
Uniform and tidy;
Safe and stable performance.

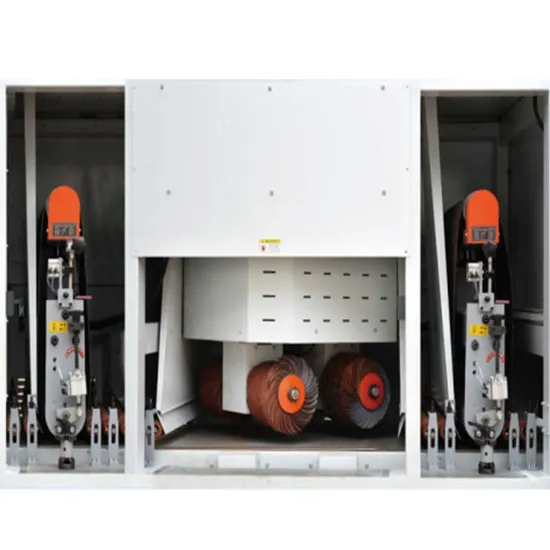

Structural Configuration Diagram
Double sand belt frame facilitates metal deburring of stainless steel and carbon steel process with good finish.Large meshes of sand belts contribute to hairline fine finish. Small meshes of sand belts contribute to burrs removal.

Conveyor Belt
Multi layer thickened material facilitates no deviation of conveyor belt and long service life;
High wear resistance and anti-curling;
Support uniform grinding;
Strong adsorption.
Brush Roller
Brush rollers are mainly applied to achieve edge rounding;
Common configuration: 4/6/8 brush rollers for 800mm, 1000mm and 1300mm size separately.
6.6kW Wet Dust Collector
Motor: 5.5kW;
Water pump:1.1kW;
Efficient demister: Honeycomb demister;
Control cabinet: Main parts are Delixi;
Level gauge: 304 stainless steel;
Water tank volume: 300L;
Blower silencing system: stainless steel;
Equipment alarm system: air blower, water pump, water level.
OPTIONAL FUNCTIONS:

Polishing Roller
The sand frame can be replaced with a polishing roller. The polishing roller is used for the rough grinding of all metal(including gold), wood, plastic and other workpieces, for removing metal burrs, sanding, wire drawing, grinding, decoration, matte, soft light, etc., mainly used for grinding stainless steel extra find sand grain polishing and mirror treatment.

MACHINE FEATURES:
** The surface is deburred and finished, and the abrasive belt can be changed at will.The mesh number of the product will change accordingly.
** It is suitable for the removal of burrs in the holes of sheet metal parts on the same plane or relative to the same plane by CNC punching and shearing machines; the removal of burrs generated after laser cutting; the removal of slag generated by flame cutting or plasma cutting, etc.
** Replace the burrs with files, scrapers, or use electric and pneumatic tools for grinding process solutions, so that the workpiece can be polished more evenly; it is safer, and it can effectively reduce labor costs and improve production efficiency.
** The equipment adopts Chint button system, which is simple and convenient to operate, and the thickness digital display can be electrically upgraded and fine-tuned, which is convenient and quick to adjust the grinding amount.
** This machine uses common consumables in the market, and imported sandpaper can also be customized to improve production efficiency and meet special requirements of products.
** The equipment is equipped with a dust collector interface to suck away the dust, metal shavings and dust generated during the working process of the equipment. You can choose a separate dust removal equipment or link the existing equipment in the factory.
