US$200.00-235.00
|
15 Pieces
(MOQ)
|
Basic Info.
Electric Winch Model
12500 Lbs
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Desert
Rated Line Pull
12500lbs Car Winch
Transport Package
62cmx36cmx26cm
Production Capacity
5000PCS Per Month Car Winch
Packaging & Delivery
Package Size
68.00cm * 36.00cm * 26.00cm
Package Gross Weight
39.000kg
Product Description
12500 car winch of 12V DC
New Waterproof
Super winch support for strength and stablization
Waterproof and high temperature endurable motor for durability and reliability
Water resistand gear box with steel gear for strength
Weather resistant fully integrated contactor
Both mechanical and electrical overload limiter
Time pulling indicator
Overload indicator
Low voltage indicator
OPTIONAL

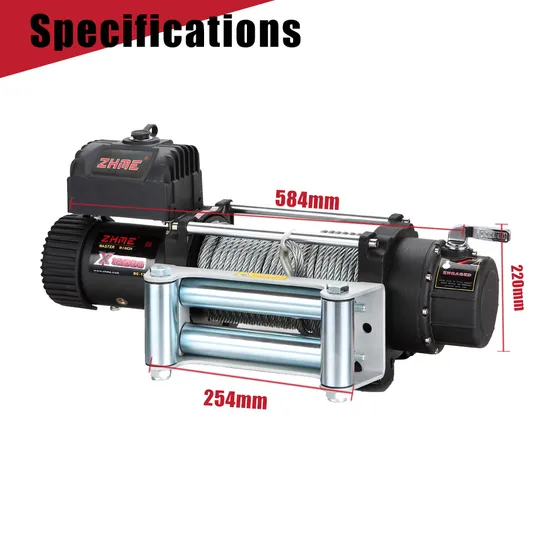

Specifications |
Rated line pull: | 12500 Lbs (5670kgs) single line. |
Motor: | Series wound 6.8 hp /5.0kw,12V DC |
Gear Train: | 3 stage planetary |
Gear ratio: | 273: 1 |
Clutch: | Sliding Ring gear |
Braking action: | Automatic in the drum |
Battery: | Recommended 650 CCA minimum for winching |
Battery: | 25mm2,72″(1.83m) |
Fairlead: | 4-way Roller fairlead |
Wire rope: | 3/8"×85'(9.5mm ×26m) |
Drum size: | 2.5"×9.0"(64mm×228mm) |
Dimensions: | 23"×6.6"×8.7"( 584mm×168mm×220mm) |
Mounting bolt pattern | 10"×4.5"(254mm×114.3mm) |
N.W: | 97 lbs (44kgs) |
