PP PE Film Washing and Recycling Line
| US$30,000.00-55,080.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WRM
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Name
PP PE Film Washing and Recycling Line
Inverter
ABB Brand
Motor
Siemens Beide
Raw Material
Pet PP PE
Contactor
Siemens Contactor
Warranty
1 Year
Color
Customised
Temperature Controller
Rkc
Weight
10-20t
Voltage
380V 50Hz 3phase(Customized)
Transport Package
Standard Shpping Package
Specification
25mx2.5mx2.2m
Trademark
CAMEL
Origin
China(Mainland)
HS Code
84772090
Production Capacity
800 PCS/Year
Product Description

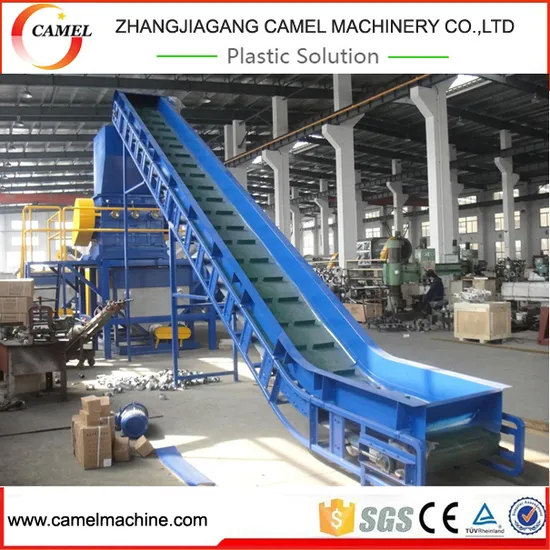

Plastic film & bag recycling and washing line :Belt conveyor*2→Crusher (with water) *2→ Double screw conveyor*2→Film floating washer→ Screw conveyor→ High speed friction machine→ Screw conveyor→ Horizontal dewatering machine→ Drying system→ Transition silo→ Drying system→ Storage hopper→ Control cabinet
Advantages:
1. Final products has good quality. When process PP PE film bags, Water content<=8%
2. The whole line capacity between 200kg/h-2000kg/h (200kg/h, 300kg/h, 500kg/h, 1000kg/h)
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service lift time
4. World famous brand components applied on the production line- SKF bearing, Siemens contactor, RKC temperature, ABB inverter, Siemens PLC control etc
5. The whole production line with CE certification, ISO9001 certification
Technical parameter:
| Plastic PP PE film/bag recycling washing line main components(1000kg): | ||
| Name | Quantity | Power |
| Belt conveyor | 2sets | 2.2kw*2 |
| Crusher | 2sets | 55kw*2 |
| Screw conveyor | 2sets | 3kw*2 |
| Floating washer | 1set | 3kw+3kw+3kw |
| Screw conveyor | 1set | 5.5kw |
| High speed frication machine | 1set | 45kw |
| Screw conveyor | 1set | 5.5kw |
| Horizontal dewatering machine | 1set | 110kw +1.5kw |
| Drying system-1 | 1set | 48kw+11kw |
| Transition storage hopper | 1set | / |
| Drying system-2 | 1set | 36kw+11kw |
| Storage hopper | 1set | 1.5kw+1.5kw |
| Control cabinet | 1set | / |
