Sand Cement Mixer Machine From China
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
WZ-5
Capacity
10-14m�/h
Certification
CE, ISO, SGS, CE, ISO
Condition
New, New
Main Material
Carbon Steel, Stainless Steel
Mixing Capacity
1000L & Above
Mixing Drum Shape
Double Cone, Double Cone
Power Source
Electric
Safety Features
Emergency Stop Button, Overload Protection
Stirring Type
Spiral, Spiral
Warranty
1 year, 1 Year
Working
High Speed Mixer, Shear Mixer
Mixer Type
Powder Mixer
Application
Powder
Layout Type
Horizontal
Additional Capabilities
Milling
Operating Type
Continuous Operating
After-Sales Service
All Life
Transport Package
Seaworthy Package
Specification
2800x3200x1950mm
Trademark
QuanHua Mix
Origin
China
HS Code
84743100
Production Capacity
1000set/Month
Product Description

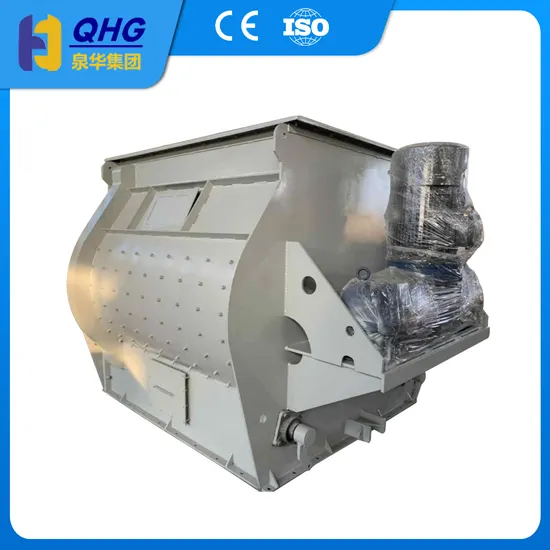

5-50T/H WZ No Gravity Mixer Machine for Mixing Cement/Sand/Dry MortarWorking Principle for No Gravity Mixer:
Double shaft paddle mixer is a batch mixer with two counter-rotating shaft that are equipped with ten paddles, they overlap each other following the driven unit, Blades generate centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant no-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed in the end.
Working Characteristic for No Gravity Mixer Machine:
Widely Usage for No Gravity Mixer Machine:
WZ Series Double shaft mixer is widely applied in dry mortar mixer production line ,powder mixer line chemical, biological, and construction material production.It can mix powder, mortar ,granule, and fiber with evenly and efficiently .
Technical Parameter for No Gravity Mixer Machine:
| specification | WZL-0.3 | WZL-0.5 | WZL-1 | WZL-2 | WZL-3 | WZL-4 | WZL-6 | WZL-10 | WZL-15 | WZL-20 |
| working capacity(m3) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 6 | 9 | 12 |
| working capacity(kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3600 | 6000 | 9000 | 12000 |
| speed(RPM) | 60 | 60 | 53 | 43 | 43 | 35 | 35 | 29 | 22 | 18 |
| power(KW) | 5.5 | 7.5 | 11 | 22 | 30 | 37 | 44 | 60 | 90 | 150 |
| weight | 650 | 900 | 1300 | 2300 | 2800 | 3400 | 5000 | 6000 | 8500 | 12000 |
| length | 1600 | 1800 | 2400 | 2800 | 3200 | 3400 | 3700 | 4000 | 4600 | 5200 |
| width | 850 | 1000 | 1400 | 1700 | 1950 | 2000 | 2200 | 2600 | 3100 | 3500 |
| height | 950 | 1100 | 1800 | 1950 | 2000 | 2000 | 2300 | 2600 | 2800 | 3000 |
Quality Guarantee for No Gravity Mixer Machine :
Our no gravity double shaft mixer machine could use 5-7 years unless the easier wear parts .So pls don't hesitate to contact us if you have any requirement .Then we will suggest you with the best model of mixer machine according to the usage .
For more details,pls don't heistate to contact us asap!
