Zqs Underground Portable Hand Held Pneumatic Coal Drilling Machine
Basic Info.
Model NO.
ZQS-35/1.6S
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
101-150mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Type.
Zqs-60/2.1
Rated Pressure
0.5
Rated Torque
60nm
Rated Speed
330r/Min
Gas Consumption
3.2m3/Min
Maximum Load Torque
4
Weight
20kg
Transport Package
Carton Box, Plastic Bagsor as Your Payment
Specification
CE, SGS
Trademark
China Coal
Origin
China
HS Code
8501520000
Production Capacity
1000 Sets Per Month
Packaging & Delivery
Package Size
100.00cm * 80.00cm * 80.00cm
Package Gross Weight
30.000kg
Product Description
Introduction of Zqs Underground Portable Hand Held Pneumatic Coal Drilling MachineZQS-35/1.6S Underground Portable Hand Held Pneumatic Coal Drilling Machine is suitable for rock bolting in roadway and half roadway where the hardness of rock is less than or equal to f6. It can not only drill rock bolt hole, but also stir and install resin cartridge type rock bolt.
Main Characteristics of Zqs Underground Portable Hand Held Pneumatic Coal Drilling Machine
1. Small size, light weight, easy manipulation and simple maintenance;
2. Metal motor gear,longer service life;
3. Stable running,high reliability;
4. Safe and anti-explosion, rational construction, high adaptability;
zmwm21
Technical Parameters of Zqs Underground Portable Hand Held Pneumatic Coal Drilling Machine
| Model | ZQS-60/2.1 | ZQS-50/1.7 | ZQS-35/1.6 |
| Working pressure(Mpa) | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
| Rated pressure(Mpa) | 0.5 | 0.5 | 0.5 |
| Rated speed(r/min) | 330 | 320 | 440 |
| Rated torque(N.m) | 60 | 50 | 35 |
| Stall torque (N.m) | 70 | 57 | 55 |
| No-load speed(r/min) | ≥1000 | ≥1000 | ≥1000 |
| Gas consumption(m3/min) | 4 | 4 | 4 |
| Water flushing pressure (Mpa) | 0.6~1.2 | 0.6~1.2 | 0.6~1.2 |
| Noise(dBA) | ≤95 | ≤95 | ≤95 |
| Total weight(Kg) | 20 | 13.5 | 13.5 |
| Brand | China Coal |
| Packing Details | carton box, plastic bags, wooden cases or as your requirement |
| Delivery Time | 5-10 days after your payment |
| Payment Terms | TT, Western Union and Paypal |
| Supply Ability | 1000 sets per month |
| Minimum Order Quantity | 1 set |
| Price Terms | FOB |
| Port | Qingdao,Ningbo,Shanghai,Shenzhen |

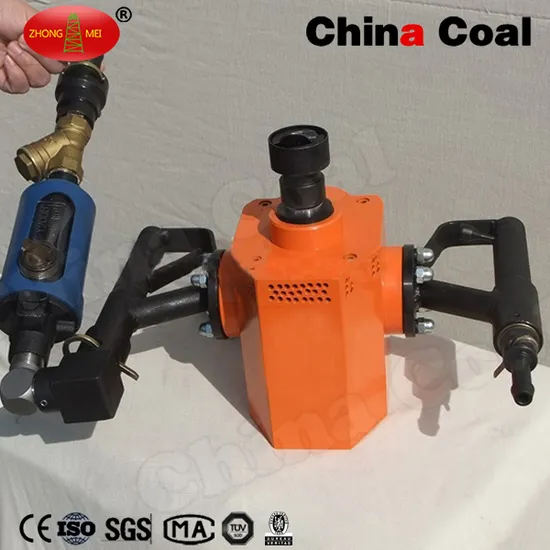

Photos Of Zqs Underground Portable Hand Held Pneumatic Coal Drilling Machine
