Nw104 Number Win Wholesale Cheap 1 Cranks Manual Patient Nursing Hospital Bed

Product Description

NW104 NUMBER WIN Wholesale Cheap 1 Cranks Manual Patient Nursing Hospital Bed
Product Parameters Technical parameters

External size (LxW)	2140x960x500(±10mm)
Mattress platform	1950x900mm
Back-rest adjustment	0-75° (±10°)
Safe working load	200 kg

Technical configuration

Manual crank	1 pc
5″ covered castors	4pcs
6-bar foldable side rail	1set
IV pole prevision	4pcs
Drainage hook	2pcs

Product Description * The simple and elegant head and foot board design of the bed meets the hospital's infection control requirements and supports daily disinfection operations.
* Environmentally friendly plastic, non-toxic and odorless.
* Fully automatic robot seamless welding process, high quality welding.
* 1 function:Backrest adjustment.
* It is made of high-quality cold-rolled steel plate and stamped in one step, with a thickness of 1.0mm and a bed width of 900mm. It has a multi-hole design for breathability and anti-slip function. There are no solder joints on the surface, and there are steel pipe reinforcements on the back to extend the life of the hospital bed. It can bear a load of 200KG.
* Equipped with sixth aluminium alloy guardrail, the design concept is a combination of aluminum alloy horizontal bars and stainless steel vertical bars, which is corrosion-resistant, has both aesthetic appeal and increased strength.
* Simple and elegant bed head and foot shape, easy to disassemble and install, with medical record card at the foot of the bed.
* Using medical silent wheels with a diameter of 125mm, and each caster has a brake.
* Retractable ABS crank handle.
* All stainless steel 4-hook retractable infusion pole.
* There are drainage hooks on both sides of the bed

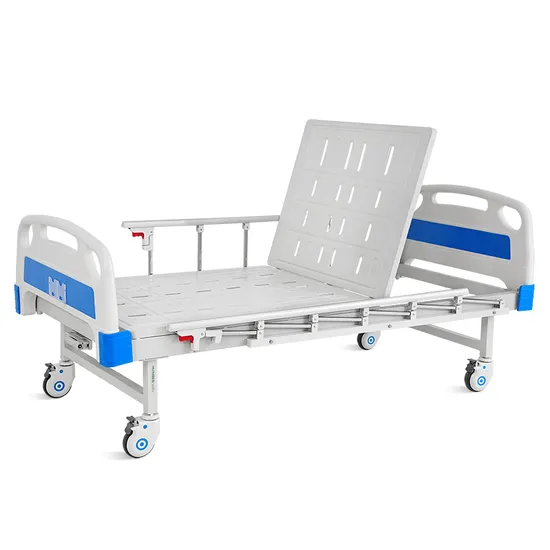

Detailed Photos
