Customized 40cbm-60cbm Methanol/Butadiene/ISO-Butane LPG Transport Truck

Product Description

customized 40cbm-60cbm methanol/butadiene/ISO-butane lpg transport truck
LPG(Liquefied petroleum gas)tank semi trailer also known as LPG road tanker , LPG tank trailer , the purpose of the LPG gas tank semi trailers is used for LPG , Ammonia , Propane , Butane or butane . The LPG semi trailers are flammable mixtures of hydrocarbon gases used as fuel in heating appliances , cooking equipment and vehicles . The material of the China semi trailer truck tank is carbon steel Q345R,Q370R,Q420R.
The loading capacity of the China semi trailer truck which is provided by ASME authorized tank semi trailer manufacturers can be 20,000 liters to 61,900 liters . The good quality LPG road tanker can ensure the LPG delivery safety and good performance of loading and unloading . Only the professional LPG tank semi trailer manufacturer and designers can produce the good quality and standardize LPG propane semi trailers for the clients . Our factory can supply the customized LPG tanker semi trailer and can equipped with Rego , Mec , Fisher , Ford , Corken , Rochester brand and China local brand accessories . LPG tanker semi trailer will help you solve the huge LPG delivery , Long distance transportation for the countryside and remote place .
Tank Material:Q345R
Diameter:2700mm
Shell Thickness:12mm
End Plate Thickness:14mm
Size (L*W*H):5608*2224*2814mm
Standard accessories:Safety Valve , Stop Valves , Magnetic plate level gauge , pressure gauge , Thermometer.
Description:

LPG Storage Tanker Specification of 60cbm
Volume Of Tank	60 cbm (60,000 Liters)
Filling Weight(kg)	23940
Tank Weight (kg)	12750
Thinkness (mm)	Shell:14
	End Plate:16
Tank Diameter(mm)	2700
Tank Dimensions(mm)(Length*Width*Height)	10962*2728*3318
Major Materials	Q345R Carbon Steel
Medium	Liquefied Petroleum Gas(Propane)
Fluid Property	Flammable
Disign Pressure(MPa)	1.77
Density(kg/m3)	420
Corrosion Allowance(mm)	1
Manhole(As Customer's Requirement)
Quantity	1 on the top , DN450/DN500
Safety Valve((As Customer's Requirement)
Quantity	1
Location	On the top of the tanker
Size	DN100
Control System
Cut - off Valves	2
Liquid Level Gauge	1 (Magnetic Level Gauge)
Pressure Gauge	1
Temperature Gauge	1

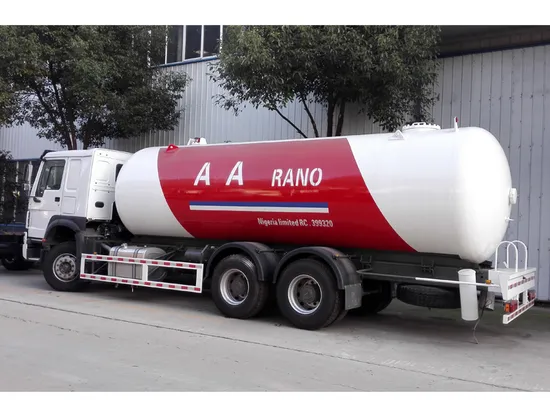

Tank picture:
Application:
LPG truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
LPG Accessiores:
More specification we can make :
Struction :
Loading :
Customer Visit:
