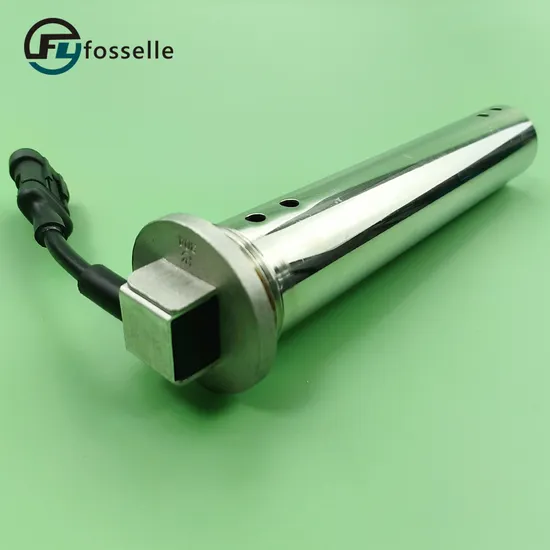

200mm Universal 0 - 190 Ohm Electrical Water Tank Level Sensor Fuel Level Sensor Float Switch Diesel Level Sensor
Basic Info.
Model NO.
FSL-SD3-200
Output Signal Type
Analog Type
Production Process
Integration
Feature
Corrosion Resistant
Material
Stainless Steel
IP Rating
IP67
Certification
CE
Customized
Customized
Length
100-3000mm Customizable
Material Optional
PVDF/PP/SUS304/SUS316 0ptional
Cable
PVC or High Temperature Silicone
Output Signal
Resistance/Current/Voltage Optional
Transport Package
Carton
Specification
100mm-1500MM
Trademark
fosselle
Origin
China
HS Code
90269000
Production Capacity
20000
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Product Description As a diversified manufacturer ofliquidlevel sensors, our company has tens ofthousands ofsensors applied annuallyinfields such as generators, yachts, trucks,and construction machinery.The producthas a simple structure and adopts theprinciple of magnetic field control tomake and break the contacts ofthe reedtube.lthas the characteristics oflongservice life, antivibration, and explosion.proof.WIDE APPLICATION: The fuel level sender is suitable for fuel, water, kerosene, chemical tanks and any kinds of liquids without impurities .
| Level range | 100~3000mm(OEM can be optional) |
| Resolution range | 4.5mm/5mm/7mm/10mm/16mm/21mm/40mm |
| Medium | Gasoline, Diesel fuel, Water, Polluted water, Drinking water, Alcohol, Chemicals, etc |
| Power supply | 10-32v |
| Rated power | 125mW |
| Rated current for alarm switch | 500mA |
| Operating temp. range | -40~+85ºC |
| Wire | PVC material(PA corrugated pipe cover is optional) |
| Probe material | Stainless steel 304 Stainless steel 316L |
| Floats material | Plastic(for oil medium) Stainless steel 304(For drinking water, chemicals, etc.) Stainless steel 316L(For sewage) |
| Mounting | BSP 1 1/2",BSP1 1/4" thread twist-in;NPT thread twist-in. flanges :38*2.6mm O-ring /43*3.5mm O-ring.(OEM) |
