Lower Noise Anti Fire Corrugator Felt Use for Hight Spee Corrugator Machine with

Product Description

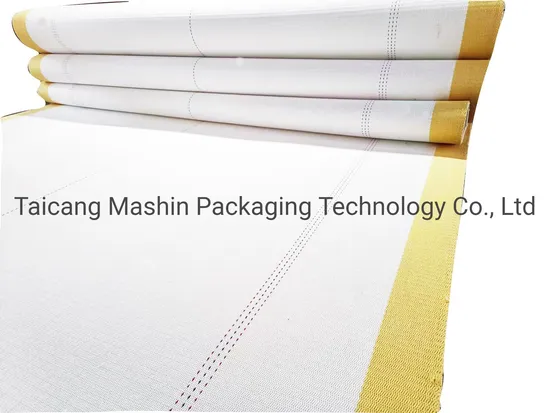

Product Description The corrugator Belt is a consistent development based on the proven woven high-speed corrugator belt range.
Also is ideal for corrugating systems with high production speed, even load systems and frequently changing paper widths.we also supply needle corrugator belts, woven corrugator belts, single facer traction belts, etc. Detailed Photos
Product Parameters
Thickness (9±0.30)mm
Width (1400-3200)mm
Heat-resistance 200ºC
Tensile strength 65Mpa
Coefficient of friction ≥0.4u
Weight per unit (7.5 ± 0.3)kg/m2
Air-permeability 2.0m3/m2min.
Installation Instructions
Our Advantages
Product Features
Tensile strength: Warp direction (63-75) Mpa in dry mode.
Heat resistance: Raw materials are polyester synthetic fiber, softening point≥260ºC.
Moisture absorption: Quick absorption and emission of heat, therefore cardboard can be quickly dried.
Seams: Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness and non-marking.
Suitability: Suitable for all types of corrugators, various cardboards and some particular operation mode.
Geometrical dimension: Steady belt dimension, high weaving density, low stretching and contraction, and good contact between belt surface and cardboard.
Service life: As long as the same products are imported abroad. Packaging & Shipping
1. Q: Why choose machin?
1). 10 Years of Specialization in Paper & Corrugated cardboard
2). Over 1000 successful experiences on the corrugated cardboard production line
3). Strict inspection before delivery
4). We have a series of none crush wheels to meet different corrugator lines.
2. Q: How about the after-sale service?
All-round after-sales Service System
Always online 24 hours. for Email, Whatsapp.
